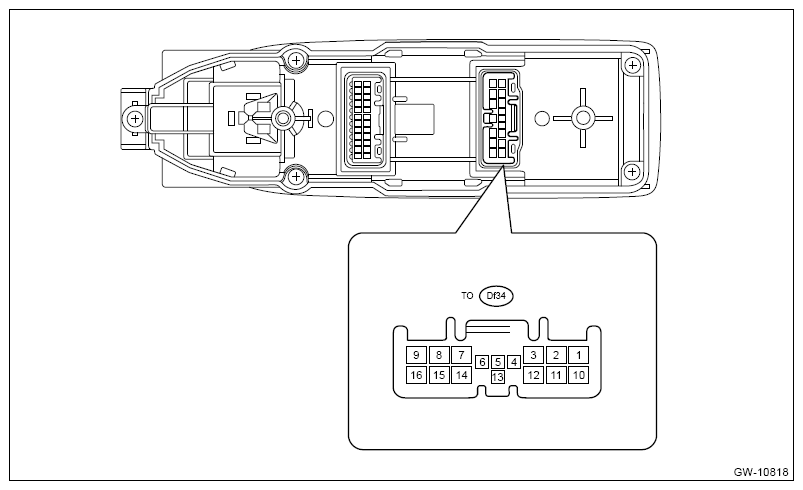

Power Window Main Switch
- With auto function equipped for front seats only
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (Df34) No. 1 | Power window switch UP (rear seat RH) | - | - |
| (Df34) No. 2 | Power window switch DOWN (rear seat RH) | - | - |
| (Df34) No. 3 | - | - | - |
| (Df34) No. 4 | - | - | - |
| (Df34) No. 5 | - | - | - |
| (Df34) No. 6 | - | - | - |
| (Df34) No. 7 ←→ Chassis ground | GND | Always | Less than 1 Ω |
| (Df34) No. 8 | Power window switch DOWN (rear seat LH) | - | - |
| (Df34) No. 9 | Power window switch UP (rear seat LH) | - | - |
| (Df34) No. 10 ←→ Chassis ground | Battery power supply | Always | Battery voltage |
| (Df34) No. 11 | Power window switch DOWN (driver's seat) | - | - |
| (Df34) No. 12 | Power window switch UP (driver's seat) | - | - |
| (Df34) No. 13 | LIN communication | - | - |
| (Df34) No. 14 | - | - | - |
| (Df34) No. 15 | - | - | - |
| (Df34) No. 16 ←→ Chassis ground | Ignition power supply | Always | Battery voltage |
- With auto function equipped for all seats
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (Df34) No. 1 | - | - | - |
| (Df34) No. 2 | - | - | - |
| (Df34) No. 3 | - | - | - |
| (Df34) No. 4 | - | - | - |
| (Df34) No. 5 | - | - | - |
| (Df34) No. 6 | - | - | - |
| (Df34) No. 7 ←→ Chassis ground | GND | Always | Less than 1 Ω |
| (Df34) No. 8 | - | - | - |
| (Df34) No. 9 | - | - | - |
| (Df34) No. 10 ←→ Chassis ground | Battery power supply | Always | Battery voltage |
| (Df34) No. 11 | Power window switch DOWN (driver's seat) | - | - |
| (Df34) No. 12 | Power window switch UP (driver's seat) | - | - |
| (Df34) No. 13 | LIN communication | - | - |
| (Df34) No. 14 - | - | - | - |
| (Df34) No. 15 - | - | - | - |
| (Df34) No. 16 ←→ Chassis ground | Ignition power supply | Always | Battery voltage |
