Front Regulator And Motor Assembly: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .
  3. Remove the front sealing cover. Ref. to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>FRONT SEALING COVER .
  4. Remove the weather strip inner door front. Ref. to EXTERIOR BODY PANELS>WEATHER STRIP>REPLACEMENT>FRONT DOOR>DOOR PANEL (INNER) .
  5. Remove the glass assembly front door. Ref. to GLASS/WINDOW/MIRRORS>FRONT DOOR GLASS>REMOVAL>FRONT DOOR GLASS .

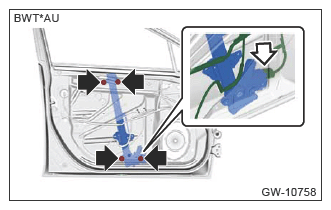

  6. Remove the regulator and motor assembly front.
    1. Disconnect the connector and clamp.
    2. Remove the bolts, and then remove the regulator and motor assembly front.
G13953331Courtesy of SUBARU OF AMERICA, INC.
