Rear View Mirror

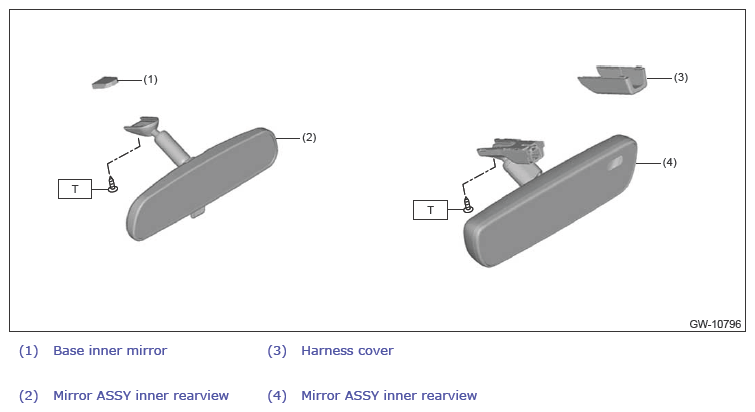

Fig 1: Rear View Mirror Components
G13953318Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 2.0 (0.2, 1.5)
