Rear Regulator And Motor Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the rear sealing cover. Ref. to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>REAR SEALING COVER .
  4. Remove the glass assembly rear door. Ref. to GLASS/WINDOW/MIRRORS>REAR DOOR GLASS>REMOVAL .
  5. Remove the regulator and motor assembly rear.

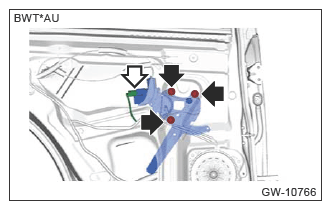

    1. Disconnect the regulator and motor assembly rear connector.
    2. Remove the bolts, and then remove the regulator and motor assembly rear.
G13953355Courtesy of SUBARU OF AMERICA, INC.
