Rear Window Defogger System: Repair

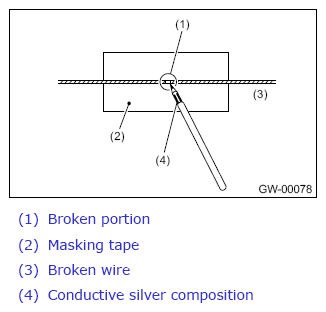

  1. Clean the broken portion with alcohol or appropriate cleaning solvent.
  2. Mask both side of wire with masking tape.
  3. Apply the repairing material to the broken portion.

    Preparation items:

    Repairing material: DUPONT No. 4817 or equivalent

    G13953381Courtesy of SUBARU OF AMERICA, INC.
  4. After repair, check the wire.
