Rearview Mirror: Adjustment: Calibration

Before performing calibration, check the following items.
- There is a sufficient distance from a big metal object or a building.
- Vehicle is parked on a level surface.
- The switch of unnecessary accessories (A/C system, audio system and lighting system) is turned to {OFF}.
- All doors are closed.
Start the engine.

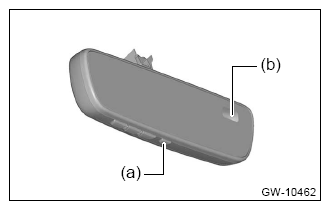

Press and hold the power supply switch (a) for more than 9 seconds. Once calibration mode starts, "C" is displayed on the screen (b).

Courtesy of SUBARU OF AMERICA, INC.
Drive the vehicle in a circle until the display of "C" on the screen goes off. (Approx. two or three times)
Display the compass to check the operation.
CAUTION: The mirror may not be able to perform the reading correctly. Therefore, when the compass operates only to the specific direction, repeat steps 3 ) to 5 ).
