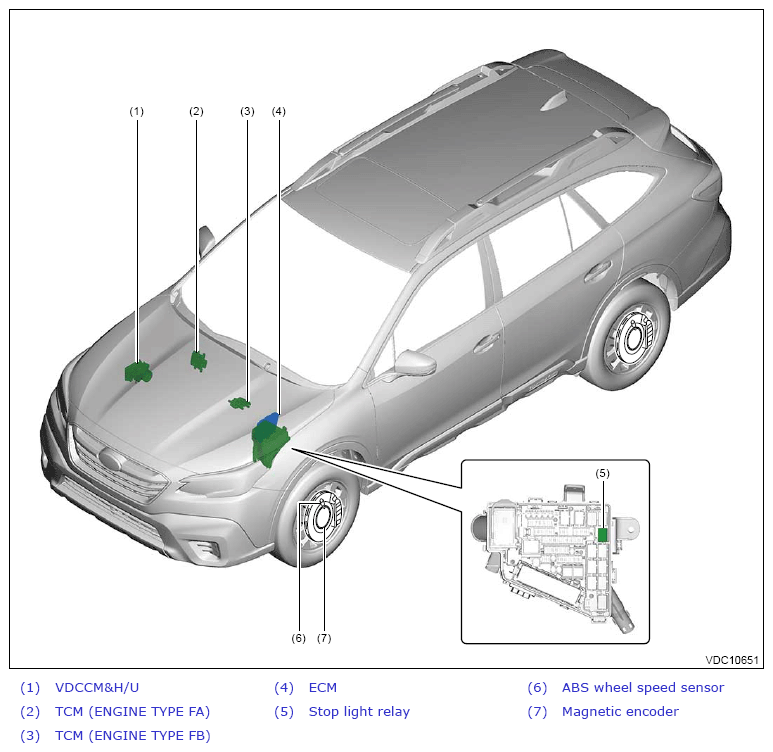

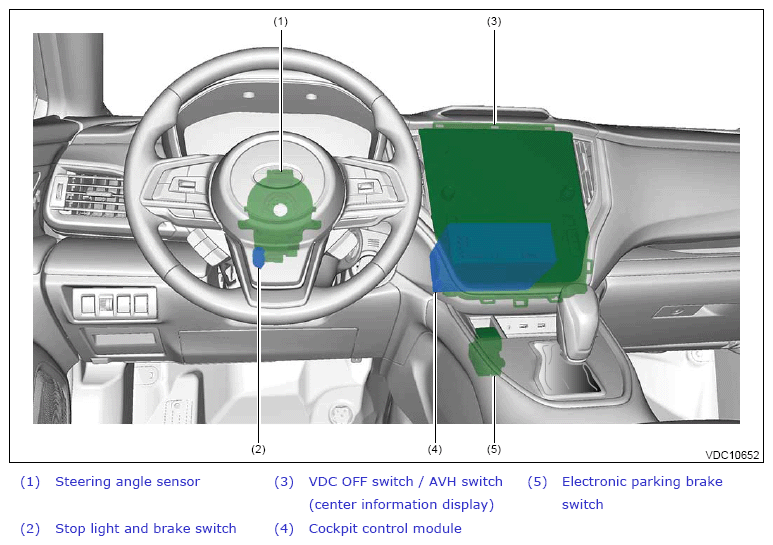

Brake Control System (Diagnostics): Electrical Component Location: Location

G13952501Courtesy of SUBARU OF AMERICA, INC.
G13952502Courtesy of SUBARU OF AMERICA, INC.
