Brake Warning Light Does Not Go Off

Detecting condition:

• Brake warning light circuit is shorted.
• Defective sensor/connector
• Defective CAN communication

Trouble symptom:

Brake warning light does not go off after starting the engine.

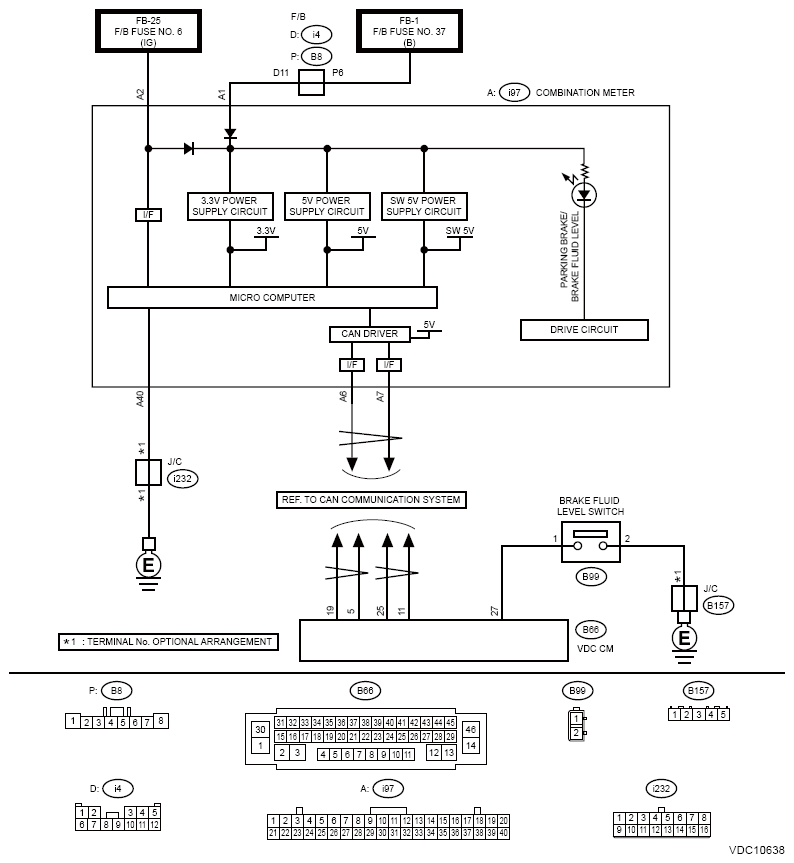

Wiring diagram:

Parking brake/brake fluid level warning light system Ref. to WIRING SYSTEM>PARKING BRAKE/BRAKE FLUID LEVEL WARNING LIGHT SYSTEM .

Combination meter system Ref. to WIRING SYSTEM>COMBINATION METER SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK INSTALLATION OF VDCCM AND H/U CONNECTOR  .
   1. Turn the ignition switch to OFF.
   2. Check that the VDCCM and H/U connector is inserted until it is locked by clamp.

   Is the connector firmly inserted?

   Yes:  Go to  2 .

   No:  Insert the VDCCM and H/U connector until it is locked by clamp.

2. READ DTC  .

   Read the DTC of [Brake Control] using the Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is DTC displayed?

   Yes:  Perform the diagnosis according to the DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

   No:  Go to  3 .

3. CHECK LAN SYSTEM  .

   Check the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .

   Is the check result OK?

   Yes:  Go to  4 .

   No:  Perform the diagnosis for LAN system.

4. CHECK BRAKE FLUID AMOUNT  .

   Check the amount of brake fluid in the reservoir tank of master cylinder.

   Does the level of the brake fluid amount fall between the lines of "MAX" and "MIN"?

   Yes:  Go to  5 .

   No:  Replenish brake fluid to the specified value.

5. CHECK BRAKE FLUID LEVEL SWITCH  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the level switch connector (B99) from master cylinder.
   3. Measure the resistance of master cylinder terminals.

      Terminals

      No. 1 - No. 2:

   Is the resistance 1 MΩ or more?

   Yes:  Go to  6 .

   No:  Replace the master cylinder. Ref. to BRAKE>MASTER CYLINDER .

6. CHECK GROUND SHORT OF HARNESS  .
   1. Disconnect the connector from VDCCM.
   2. Measure the resistance between VDCCM connector and chassis ground.

      Connector and terminal

      (B66) No. 27 - Chassis ground:

   Is the resistance 1 MΩ or more?

   Yes:  Go to  7 .

   No:  Repair the harness between VDCCM and brake fluid level switch.

7. CHECK COMBINATION METER  .

   Check the combination meter. Ref. to COMBINATION METER (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .

   Is the check result OK?

   Yes:  Replace the VDCCM and H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM and H/U) .

   No:  Replace the combination meter. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER .
