Front ABS Wheel Speed Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the sensor sub assembly front.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.

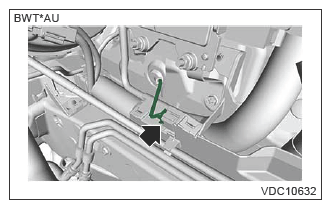

    1. Disconnect the connector of the sensor sub assembly front in the engine compartment.
      G13950037Courtesy of SUBARU OF AMERICA, INC.

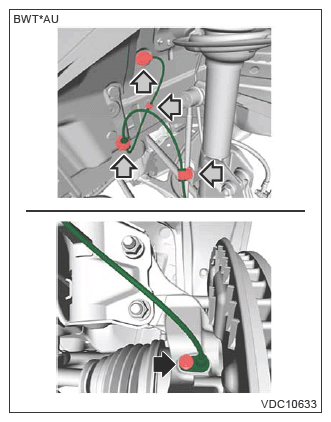

    2. Remove each harness clip and grommet.
    3. Remove the sensor sub assembly front from the front axle housing.
    G13950038Courtesy of SUBARU OF AMERICA, INC.
