Check Abs Wheel Speed Sensor Unit

Visually check the tip of the rear ABS wheel speed sensor for foreign particles or damage. If necessary, clean the tip or replace the adapter cord EPB and sensor sub assembly rear.
Disconnect the connector from the rear ABS wheel speed sensor.
Check the rear ABS wheel speed sensor cable for discontinuity. Replace the adapter cord EPB and sensor sub assembly rear if faulty.

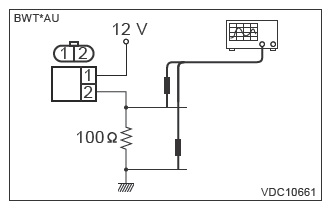

Connect a 12 V power supply to No. 1 terminal of rear ABS wheel speed sensor connector, then attach resistance to the No. 2 terminal. Rotate the wheel at about 2.75 km/h (2 MPH), and measure the voltage using an oscilloscope.

Courtesy of SUBARU OF AMERICA, INC.

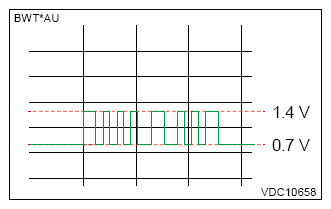

- Vehicle stopped state
Standard value of output voltage:

0.7 - 1.4 V

Courtesy of SUBARU OF AMERICA, INC.

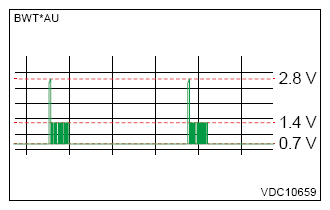

- Driving condition
Standard value of output voltage:

0.7 - 2.8 V
- Driving condition
Courtesy of SUBARU OF AMERICA, INC.

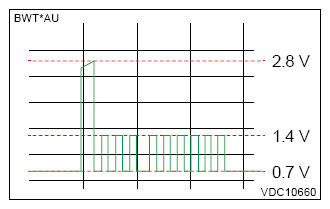

- Driving condition (enlarged view)
Courtesy of SUBARU OF AMERICA, INC.
Replace the following parts if it is found defective.
- If the output voltage is out of the standard value: Replace the magnetic encoder (rear hub unit bearing).
- If the output voltage is within the standard value: Replace the VDC control module and H/U.
