Steering Angle Sensor: Installation

CAUTION:

When removing, installing or replacing the VDC control module and H/U, VDC control module and H/U bracket, steering wheel or steering angle sensor (steering roll connector), perform "VSC(VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM and H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

Install the sensor assembly VDC steering.

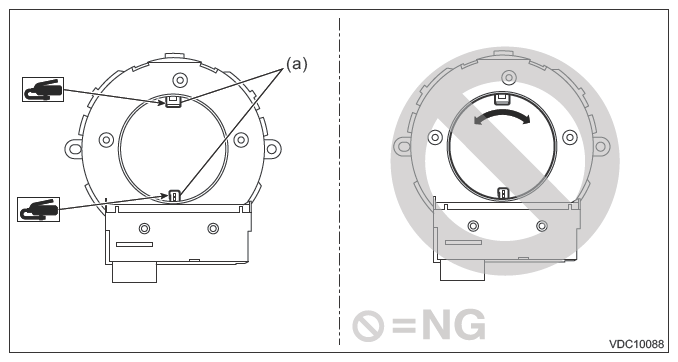

Apply grease to the protrusion (a) of the new sensor assembly VDC steering.

CAUTION: Do not rotate the steering angle sensor protrusion.

Preparation items:

Grease: KYODO YUSHI Multemp L or equivalent

Courtesy of SUBARU OF AMERICA, INC.

Align the center of steering roll connector. Ref. to AIRBAG SYSTEM>ROLL CONNECTOR>ADJUSTMENT .
Align the position of the protrusion and install the sensor assembly VDC steering to the steering roll connector.

Install the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION .
Install the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>INSTALLATION .
Install the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Perform the neutral position setting of the sensor assembly VDC steering. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM and H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
