Combination Meter: Removal

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
When the combination meter assembly is replaced, perform the variant work. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER SYSTEM>OPERATION>VARIANT WORK .

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Release the lock, tilt the steering column to the lowest end and fully extend the column by the telescopic system.

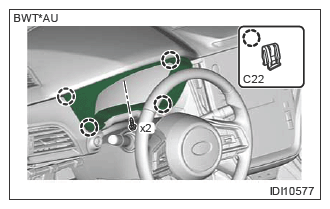

Release the screws and clips, then detach the visor assembly.

Courtesy of SUBARU OF AMERICA, INC.

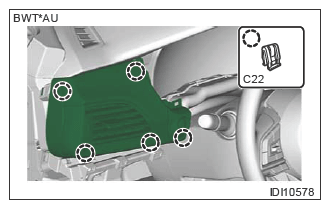

Remove the ornament panel mid driver assembly.
1. Release the clips and pull out toward yourself.
2. Disconnect the connector and remove the ornament panel mid driver assembly.
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
Remove the grip and boot. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
Remove the cover assembly front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Remove the ornament panel mid passenger assembly. Ref. to ENTERTAINMENT AND MONITORING>COCKPIT DISPLAY>REMOVAL .

Remove the combination meter assembly.

CAUTION: Be careful not to damage the meter glass or instrument panel.

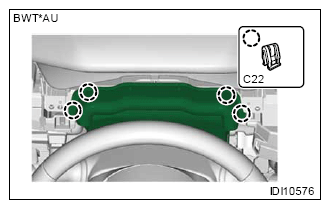

Release the clips of the cover steering UPR.

Courtesy of SUBARU OF AMERICA, INC.

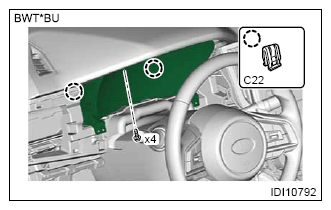

Release the screws and clips and pull out the combination meter assembly.

Courtesy of SUBARU OF AMERICA, INC.
