Fuel Delivery And Evaporation Lines: Installation: Notes

  1. Install the fuel sub delivery tube.

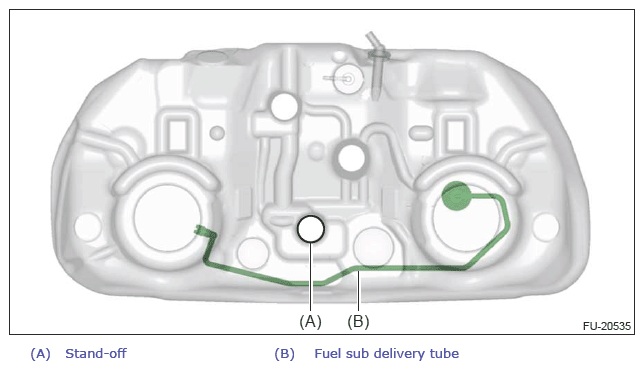

    1. Set the fuel sub delivery tube to the fuel tank.
      NOTE:
      • Route the fuel sub delivery tube in front of the stand-off as shown in the figure.
      • Check the fuel sub delivery tube to make sure it's not twisted.
      G13947358Courtesy of SUBARU OF AMERICA, INC.
    2. Install the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR>INSTALLATION .
    3. Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>INSTALLATION .

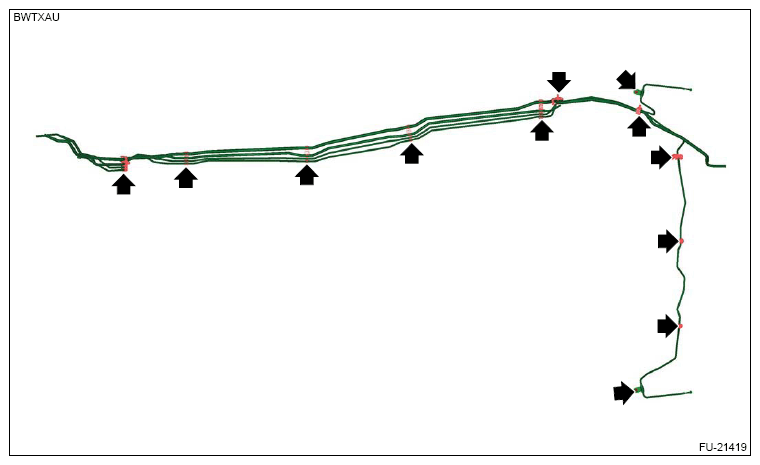

  2. Install the fuel pipe assembly.
    G13947359Courtesy of SUBARU OF AMERICA, INC.

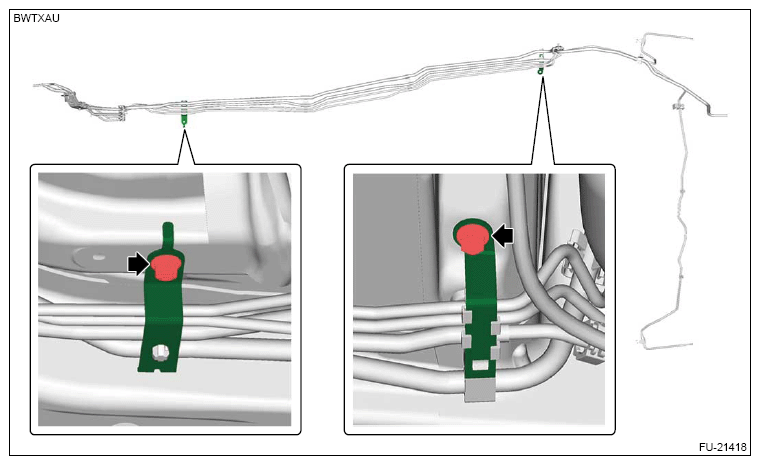

  3. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket B and fuel pipe bracket C.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13947360Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the brake pipe and brake hose.

    Brake pipe:

    Ref. to BRAKE>BRAKE PIPE>INSTALLATION .

    Brake hose:

    Ref. to BRAKE>BRAKE HOSE>INSTALLATION .

  5. Install the under cover rear RH. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>INSTALLATION .

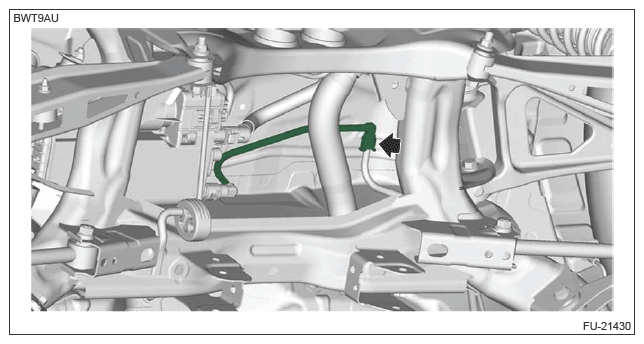

  6. Connect the purge tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE E) .
    G13947361Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the fuel delivery tube to the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .
  8. Install the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL TANK>INSTALLATION .

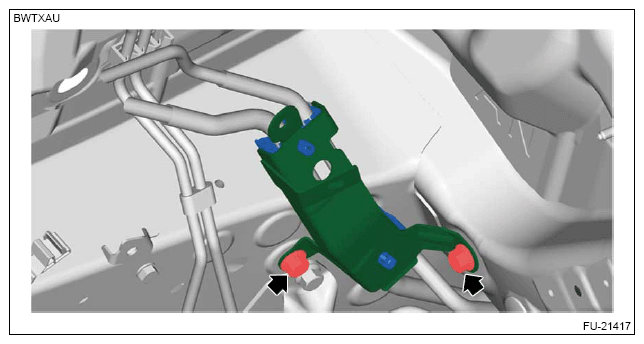

  9. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket A.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13947362Courtesy of SUBARU OF AMERICA, INC.
  10. Lower the vehicle.

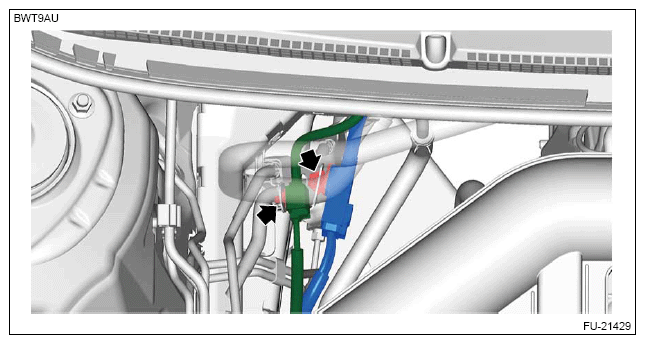

  11. Install the connector to the fuel pipe bracket A.
    G13947363Courtesy of SUBARU OF AMERICA, INC.

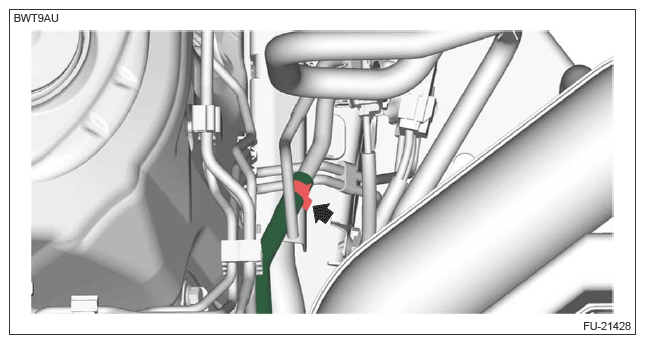

  12. Connect the evaporation hose to fuel pipe assembly.
    G13947364Courtesy of SUBARU OF AMERICA, INC.

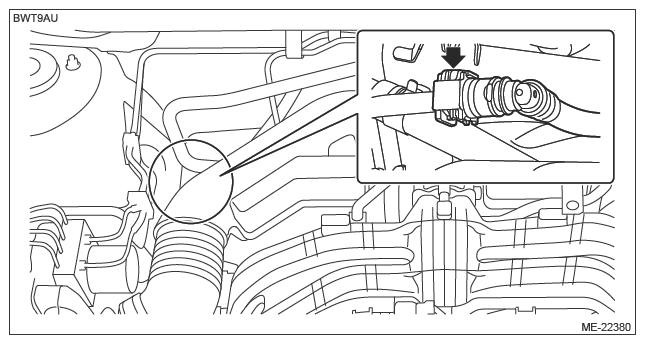

  13. Connect the quick connector on the fuel delivery tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .
    G13947365Courtesy of SUBARU OF AMERICA, INC.

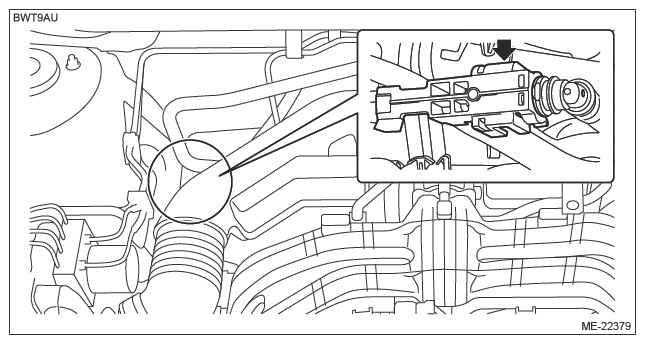

  14. Install the fuel delivery tube clamp to the fuel delivery tube.
    G13947366Courtesy of SUBARU OF AMERICA, INC.
  15. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
