Fuel Delivery And Evaporation Lines: Removal: Notes

Courtesy of SUBARU OF AMERICA, INC.

1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
2. Drain fuel. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
4. Open the fuel filler lid and remove the fuel filler cap.
   NOTE: This operation is required to release the inner pressure of the fuel tank.

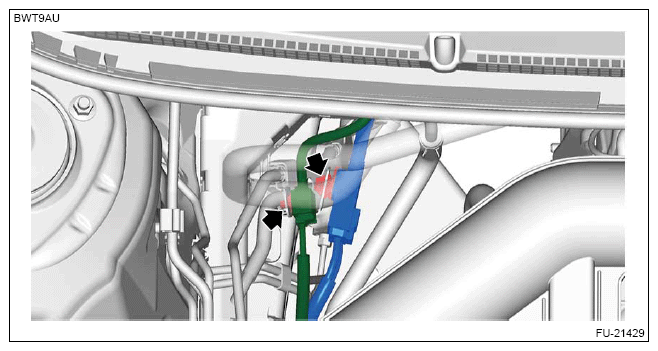

5. Remove the fuel delivery tube clamp from the fuel delivery tube.

   Courtesy of SUBARU OF AMERICA, INC.

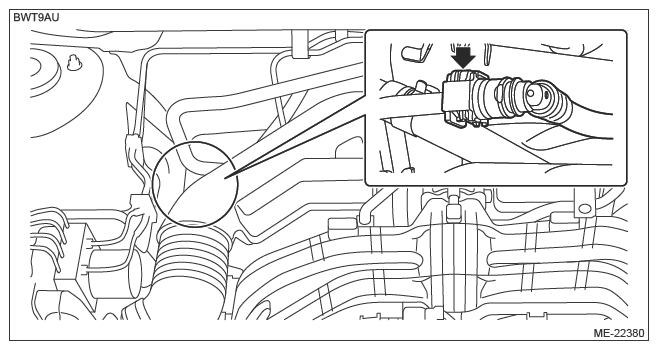

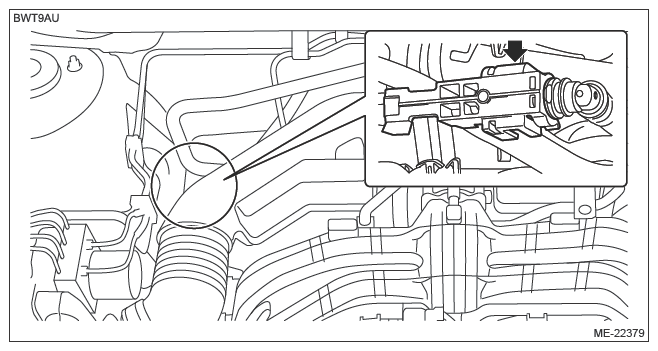

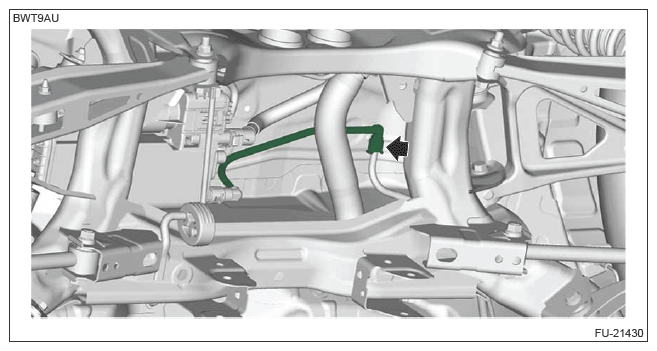

6. Disconnect the quick connector on the fuel delivery tube from the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE A) .

   Courtesy of SUBARU OF AMERICA, INC.

7. Disconnect the evaporation hose from the fuel pipe assembly.

   Courtesy of SUBARU OF AMERICA, INC.

8. Remove the connector from the fuel pipe bracket A.

   Courtesy of SUBARU OF AMERICA, INC.

9. Lift up the vehicle.

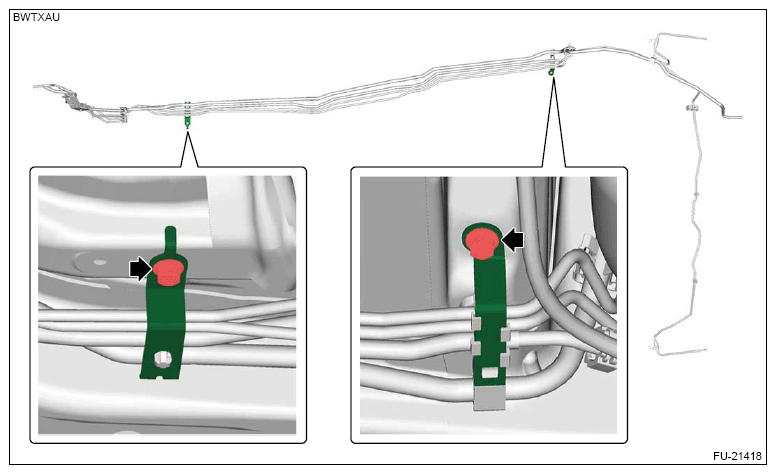

10. Remove the bolts securing the fuel bracket A, and remove the pipe clamp from the fuel pipe assembly.

    Courtesy of SUBARU OF AMERICA, INC.

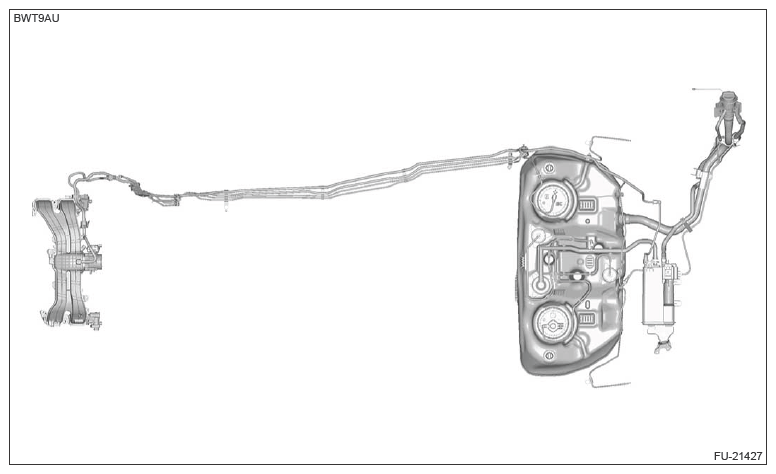

11. Remove the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL TANK>REMOVAL .
12. Remove the fuel delivery tube from the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE D) .

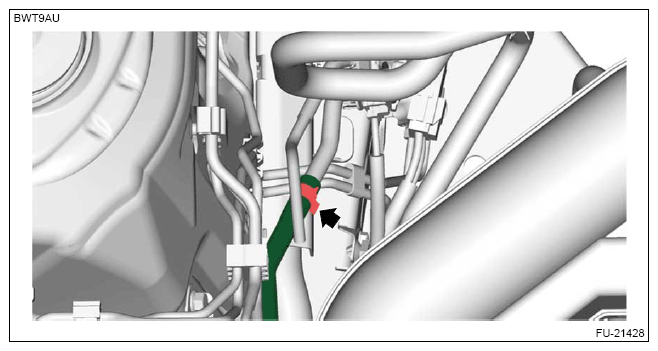

13. Disconnect the purge tube from the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE E) .

    Courtesy of SUBARU OF AMERICA, INC.

14. Remove the under cover rear RH. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>REMOVAL .
15. Disconnect the brake hose and the brake pipe.

    Brake hose:

    Ref. to BRAKE>BRAKE HOSE>REMOVAL .

    Brake pipe:

    Ref. to BRAKE>BRAKE PIPE>REMOVAL .

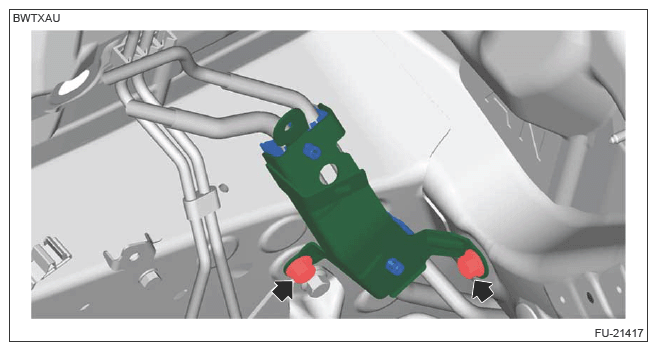

16. Remove the bolts securing the fuel pipe bracket B and the fuel pipe bracket C, and remove the pipe clamp from the fuel pipe assembly.

    Courtesy of SUBARU OF AMERICA, INC.

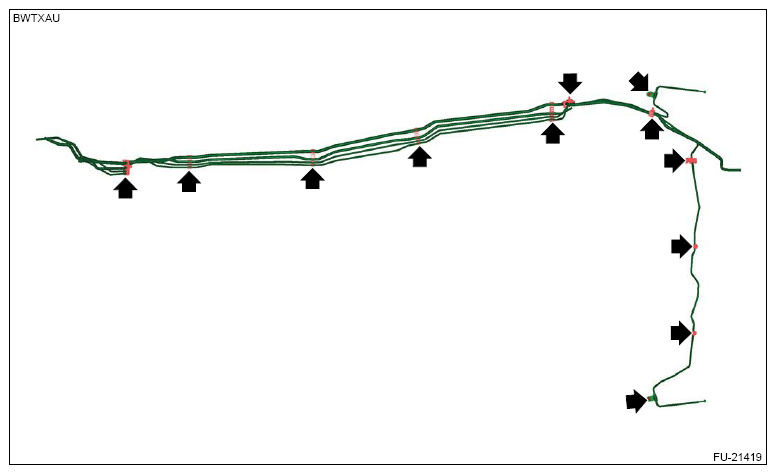

17. Remove the fuel pipe assembly.

    Courtesy of SUBARU OF AMERICA, INC.

18. Remove the fuel sub delivery tube.

1. Remove the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>REMOVAL .
2. Remove the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR>REMOVAL .
3. Remove the fuel sub delivery tube from the fuel tank.
