LH Side

Install the ignition coil.
CAUTION: Degrease the mounting bolts, rocker cover installation portion and ignition coil installation hole.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Connect the connector to the ignition coil.
Attach the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

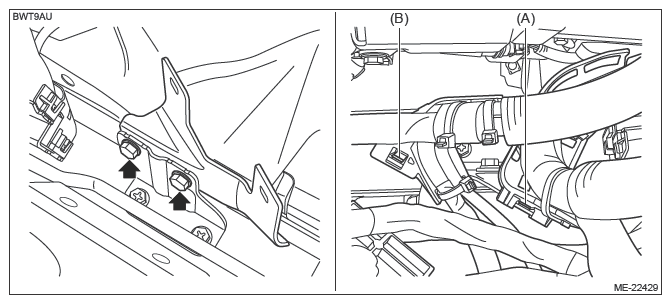

Secure the engine wiring harness to the bracket with claw (A), and secure the battery cable assembly with claw (B).

Courtesy of SUBARU OF AMERICA, INC.

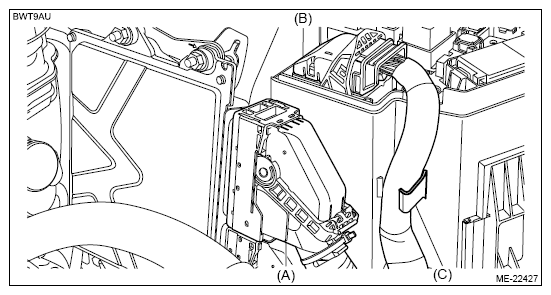

Install the engine wiring harness to the clip (C), and connect the connector (B) to the main fuse box.
Connect connector (A) to ECM.
CAUTION: To prevent damage to the connector (A), when connecting the connector (A), insert the connector (A) straight in until it stops, and while maintaining the position, lock the lever.

NOTE: Check that the lever is located at the position shown in the figure (position beyond the lock portion (a)).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>INSTALLATION .
