Brake Fluid

CAUTION:
  • If the brake fluid is split over exhaust pipe, wipe it off completely with cloth to avoid emitting smoke or causing a fire.
  • Always check the level using the specified direction because there is a partition in the reservoir tank.

Check that the brake fluid level is normal from a straight view or within 90° to the right and left forward. If the amount is insufficient, carry out a brake line test to identify brake fluid leaks and check the brake operation. After that, refill the brake fluid tank with the specified type of fluid.

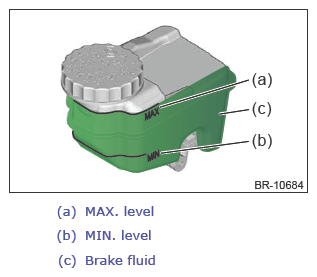

G13946981Courtesy of SUBARU OF AMERICA, INC.
