Fuel Lid Lock/Unlock And Open/Close Operation

Lock/unlock the door by keyless transmitter, access key or power door lock switch to check that the fuel lid locks and unlocks normally.
With unlock condition, push the fuel lid to check the fuel lid can be opened normally.

Operate the emergency release cable in the trunk room or luggage room to check that the fuel lid can be unlocked normally.

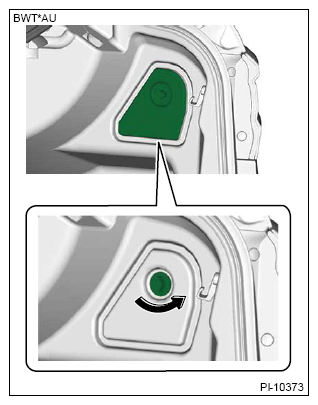

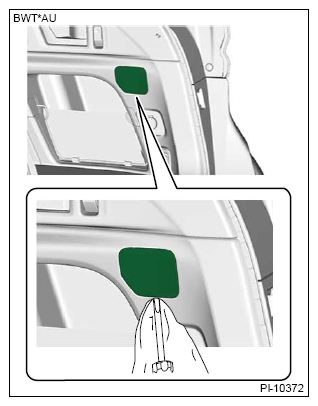

Remove the cover in the trunk room or luggage room.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

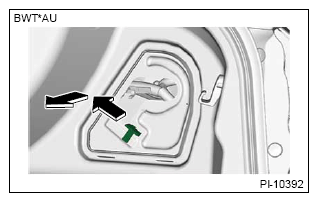

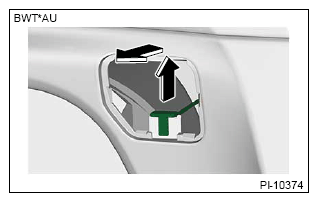

Operate the emergency release cable to check the fuel lid can be unlocked normally.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
