On The Car Wheel Balancing

CAUTION:
  • Carry out the procedures after measuring the balance of each single tire.
  • Set the vehicle so that the front and rear wheels are the same height.
  • Make sure that the VDC is deactivated.
  • Release the parking brake during measurement.
  • Rotate each wheel by hands, and make sure it rotates without dragging.
  • Do not suddenly accelerate or decelerate while working.
  • When an error is indicated during engine drive, do not use the motor drive together.
  1. Jack up the non-measuring side (front wheels or rear wheels) and set the rigid racks.

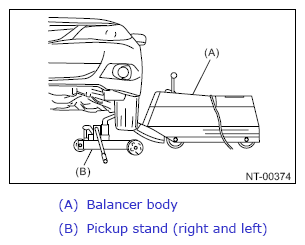

  2. Set the pickup stands to two wheels of the measuring side (front wheels or rear wheels).
    G13946943Courtesy of SUBARU OF AMERICA, INC.
  3. For drive wheel, drive the tires with engine for measurement.
  4. For non-drive wheel, drive the tires from the on the car wheel balancer for measurement.
