• Tie-Down Range

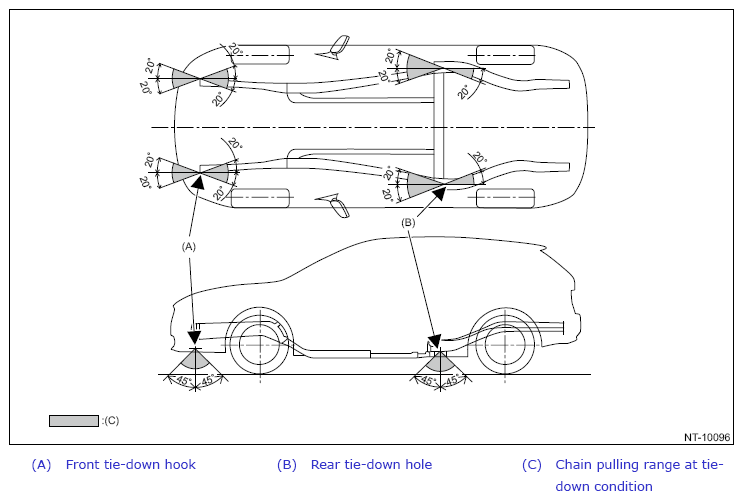

For ground transportation
CAUTION:
When the vehicle is tied down toward the vehicle inside, hook the hooks on the rear tie-down holes from vehicle inside. When the vehicle is tied down toward the vehicle outside, hook the hooks from vehicle outside.

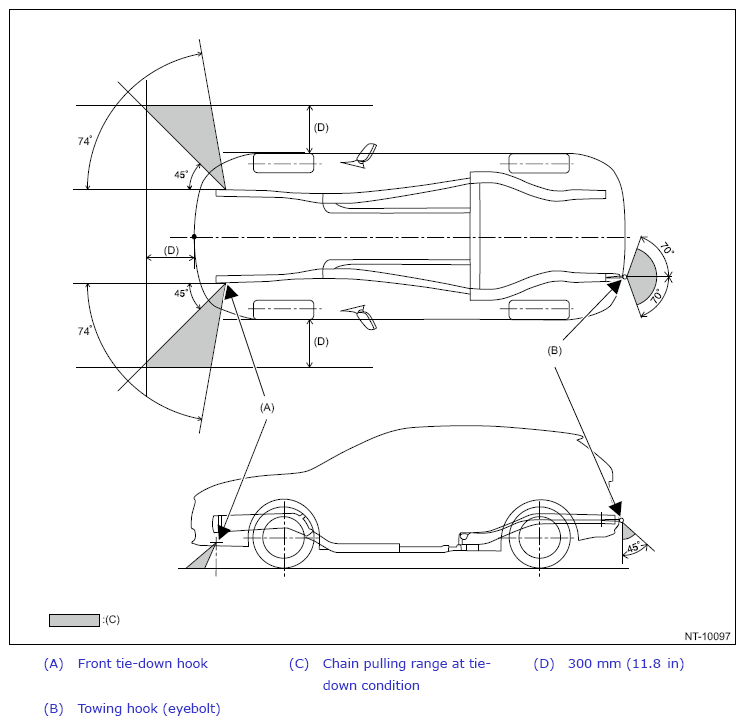

For sea transportation
CAUTION:
Hook on the front tie-down hook from vehicle outside, and tie down toward vehicle outside.
Also, hook on the front tie-down hook and the towing hook (eyebolt) from top to bottom.
The towing hooks (eyebolts) are exclusively used for towing and sea transportation tie-down, and do not use them for ground and freight transportation.
Also, hook on the front tie-down hook and the towing hook (eyebolt) from top to bottom.
The towing hooks (eyebolts) are exclusively used for towing and sea transportation tie-down, and do not use them for ground and freight transportation.
