CVT Chain Guide Breakage (WRK-22R)

WARNING: This page is about the Outback Limited XT, which is a different variant/trim than selected.

Publication date: 2023-09-12
Reference number: WRK-22R
Supersedes refnos: WRK-21, WRK-21R, WRK-22

CVT CHAIN GUIDE BREAKAGE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): WRK-21/22R, Date of Issue: September 12, 2023

SUBARU:	2019-20 Ascent; 2020-21 Legacy 2.4L (turbo models); 2020-21 Outback 2.4L (turbo models)
WRK21 NHTSA ID:	21V-955
WRK22 NHTSA ID:	22V-485

APPLICABILITY

2019-20MY Ascent

2020-21MY Legacy 2.4L (turbo models)

2020-21MY Outback 2.4L (turbo models)

INTRODUCTION

Subaru of America, Inc. (Subaru) has initiated this safety and emissions Recall for certain 2019 - 2020 model year Ascent vehicles, 2020-2021 model year turbo Legacy vehicles, and 2020-2021 model year turbo Outback vehicles in which the Continuously Variable Transmission (CVT) chain may slip and/or break.

DESCRIPTION OF THE DEFECT AND SAFETY RISK

Due to an improper program in the transmission control module (TCM), the CVT chain may slip, resulting in breakage of the chain guide. If the chain guide breaks, fragments of the guide could inhibit the shift select mechanism. If the vehicle continues operation with the drive chain slipping, over time the CVT drive chain could break.

If a drive chain breakage occurs while the vehicle is in motion, the vehicle may experience a loss of motive power, increasing the risk of a crash.

WRK-21 AFFECTED VEHICLES

The number of U.S. vehicles included in this recall in WRK-21 is 198,255.

Model Year	Carline	Production Date Range
2019-2020	Ascent	February 22, 2018 - July 20, 2020
2020	Legacy (turbo models)	July 15, 2019 - August 13, 2020
2020	Outback (turbo models)	July 15, 2019 - August 13, 2020

NOTE: This recall replaces Subaru's previous WUV-07 recall issued in January 2020 for certain 2019 model year Ascent vehicles. Any open WUV-07 coverage has been expired. Vehicles affected by the previous recall must return to complete the WRK-21 recall repair, even if the previous recall repair was completed.

Not all vehicles in the production date ranges listed above may be included in this recall. Coverage for all affected vehicles must be confirmed by using the Vehicle Coverage Inquiry function on subarunet.com.

The tools and reprogramming files are now available to perform this repair. Therefore, the status of this recall has been set to 'Open-Limited Parts Available ' for all affected vehicles to allow for repairs to begin if they are presented for service prior to owner notification.

WRK-22 AFFECTED VEHICLES

On July 7, 2022, the following additional 182 affected vehicles were added to the recall population, which will be identified by recall code WRK22:

Model Year	Carline	Production date range
2020-2021	Legacy (turbo models)	May 17, 2019 - August 3, 2020
2020-2021	Outback (turbo models)	May 21, 2019 - August 3, 2020

DESCRIPTION OF THE REMEDY

Each retailer will receive one videoscope kit and holder required for the chain guide inspection, at no charge.

For all affected vehicles, Subaru retailers will reprogram the TCM. The historical TCM data will be analyzed for chain slip characteristics and the chain guide will be visually inspected. If the vehicle is confirmed to have experienced drive chain slip or if the chain guide is damaged, the transmission assembly will be replaced. All remedy repairs necessary will be completed at no cost to the customer.

OWNER NOTIFICATION

Subaru previously notified affected vehicle owners of the WRK-21 recall with an interim letter by first class mail on February 7, 2022.

Affected vehicle owners will be notified that the remedy is available by first class mail, in phases beginning in August. Details of the phased owner notification schedule will be provided in subsequent subarunet.com announcements. Therefore, please refer to the "Communications/Announcements" section on subarunet.com for that information.

Copies of the interim and final owner notification letters will be included at the end of this bulletin.

RETAILER RESPONSIBILITY

Please be advised that it is a violation of Federal law for a dealer to deliver a new motor vehicle covered by a recall under a sale or lease until the defect is remedied. Therefore, any Authorized Subaru Retailer failing to perform the applicable service procedures to correct all affected vehicles in their inventory prior to the vehicle being placed in service may be subject to civil penalties of up to $22,423 per violation (i.e., for each vehicle), as provided in 49 CFR 578.6 and will also be in breach of the Subaru Dealer Agreement.

Any vehicles listed in any recall/campaign that are in retailer stock must be:

Immediately identified
Tagged or otherwise marked to prevent their delivery or use prior to repair
Repaired in accordance with the repair procedures outlined in the Product Campaign Bulletin

Retailers are to promptly perform the applicable service procedures to correct all affected vehicles in their inventory (used, demo & SSLP). Whenever a vehicle subject to this recall is taken into retailer inventory, necessary steps should be taken to ensure the recall correction has been made before selling or releasing the vehicle.

PART INFORMATION

REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.

Model	Part Description	Part Number	Quantity
Ascent with CVTF Cooler	CVT Assembly	31000AK130	1
Ascent Without CVTF Cooler	CVT Assembly	31000AK140	1
Outback & Legacy	CVT Assembly	31000AK270	1
Outback & Legacy	CVT Assembly	31000AK280	1
ALL	Subaru Extra MT	SOA748V0100	As Needed
	GSKT-16.3X22X1.0 (Inspection Plug Gasket)	803916100	1
	Transmission Cooler Flush	SOA868V9255	As Needed

IMPORTANT NOTE:

The CVT Assembly 31000AK130 MUST be ordered through PRIME.
All parts highlighted in gray are placed on hold. The PIC team will release the ordered parts when contacted and provided with a valid VIN and order number. Contact must be made within five business days of the order or it will be canceled.
The inspection plug gasket 803916100 is required for the inspection process. If CVT replacement is required, this gasket is to be used for the front differential fill overflow plug.
In a case when Subaru Extra MT 75W-80 SOA748V0100 is not available, High Performance Gear Oil SOA427V1700 can be used as a suitable alternative

One-Time Use Parts Kit Contents for CVT Replacement SOA635172
Part Description	Part Number	Quantity
GASKET	803914060	4
GASKET A	44011AL000	2
SELF LOCKING NUT	902330011	4
GASKET-EXHAUST PIPE REAR	44022AA123	1
GASKET-AIR INTAKE DUCT	14497AA080	1
GASKET-INTER COOLER	21896AA130	1
GASKET-EXHAUST PIPE REAR	44011AG000	1
NUT	902170049	2
GASKET 18X24X1.0	803918060	1
NUT FLG M12	902380023	2

NOTE: Though not included in this kit, CIRCLIP (28333AG010) is a one-time use part required in a quantity of 2.

IMPORTANT NOTE: The One-Time Use Parts Kit (SOA635172) MUST Be ordered through PRIME. This kit is ONLY to be ordered in the event of CVT replacement. Do not order the items listed above individually.

FLUIDS AND CHEMICALS
Part Description	Bulk Part #	Unit size	Warranty Part #	Unit size
75W-90 High Perf Gear Oil	SOA427V1700	1 Quart (12/case)	SOA635301	One Quart
	SOA427V1710	16 Gallon Keg
	SOA427V1720	55 Gallon Drum
75W-80 Extra MT Gear Oil	SOA748V0100	5 Gallon Pail	SOA635300	One Quart
High Torque CVTF-LV	SOA748V0300	5 Gallon Pail	SOA635312	One Quart
Automatic Transmission Cooler Flush	SOA868V9255	12/case	SOA635303	One Can

A maximum 7 quarts of High Torque CVTF-LV can be claimed with CVT replacement operations.

REQUIRED TOOLS

This procedure will require Specialty Tool Kit SOA635170. The information below provides details on the individual components supplied in the kit.

CRITICAL: All retailers have been provided ONE Videoscope at no charge. Additional Videoscopes can be purchased from online automotive equipment suppliers at the retailers expense.
The OTC 16-3880X Videoscope: This is the approved Videoscope kit that is to be used for chain guide inspections.

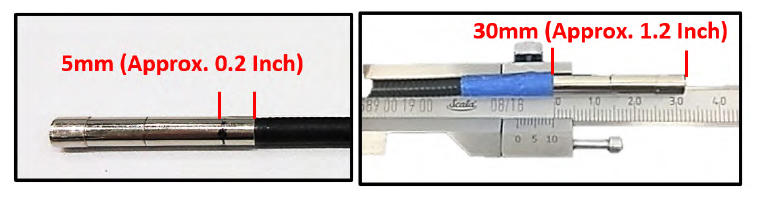

IMPORTANT: This Videoscope has a removable tip. It is suggested to add thread lock (e.g. "blue" Loctite or equivalent) to ensure the tip is not lost during inspection.
Holder 18361AA090: This specialty plug is used in conjunction with the OTC 16-3880X Videoscope Kit. It sets the position of the scope's camera to provide an optimum inspection of the chain guide affected area.

NOTE: Any replacement orders for the holder will require a release from the PIC team.

SD Card Information:

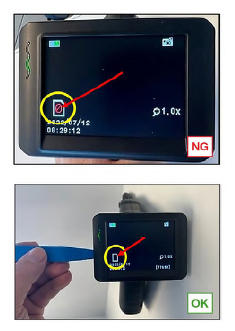

ALWAYS confirm the Micro SD card is securely seated within the camera slot. If the card is not secure, it will be indicated by a RED circle/slash icon located on the lower left corner of the screen.

Removal of the Micro SD card from the display unit is NOT REQUIRED to transfer the camera (photo) image(s). A USB cable is provided in the OTC scope kit to connect the display unit directly to a PC for direct image transfer. In rare cases, the Micro SD card may require added effort during installation. A plastic trim tool can be used to CAREFULLY apply pressure to the card during installation. A "clicktype" noise can be heard when the card is engaged. Successful card installation is indicated by the icon located on the lower left corner of the screen (NO RED circle/slash).

DATA REQUIREMENTS

The WRK-21 Chain Guide Breakage Recall requires retailers to RETAIN certain information in the form of data and photos relating to this campaign.
The table below outlines the information required.
Claims for CVT replacement require all retained information to be ATTACHED to the claim.
Claims not adhering to these procedures will be subject to REJECTION or DEBIT.
No QMR will be required

Retailer must RETAIN this required information
The Retailer must RETAIN the following information on ALL WRK-21-related repair orders (See below). Per SOA warranty policy this information must be retained by the retailer, up to 2 years, for the purpose of future review.
SSM Data Files (PREFFERRED) , screen capture or photo of SSM screen showing mileage data, "Slip A mileage 1, Slip A mileage 2, and Slip A mileage 3" displayed on SSM4 (Attach to the claim if the CVT is being replaced)
Inspection Scope Image: Clear photo or screen shot of videoscope image, if the procedure calls for this step. (Attach to the claim if the CVT is being replaced)

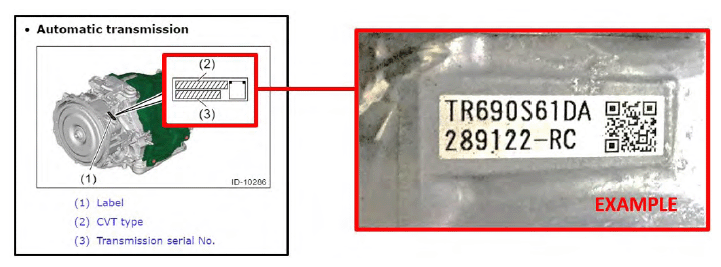

Transmission Serial Number: Clear photo of the OLD transmission's serial number. Clear photo of the NEW transmission's serial number, if the CVT is being replaced. (Attach both the old and new S# to the claim if CVT is being replaced)
WRK-21 R.O. Notes must include repair order out (repair completion) mileage of any prior CVT replacements. (Include RO notes in the claim if the CVT is being replaced)

For CVT REPLACEMENT CLAIMS:

ATTACH all the required information to all CVT replacement claims

CLAIMS NOT ADHERING TO THESE PROCEDURE WILL BE SUBJECT TO REJECTION or DEBIT .

EXAMPLES

Clear photos of the transmission serial number. Required for the unit currently in the vehicle and of the replacement (if CVT is replaced).

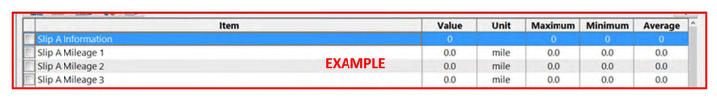

A clear screenshot or photo of the "Slip A Information, Slip A mileage 1, Slip A Mileage 2, and Slip A Mileage 3" displayed on SSM.

ONLY in a situation when no CVT chain slip is detected with SSM and the chain guide is found to be in the incorrect position during inspection, a clear photo or screenshot of the scope image is required to be stored and noted along with the previously mentioned items 1 through 3.

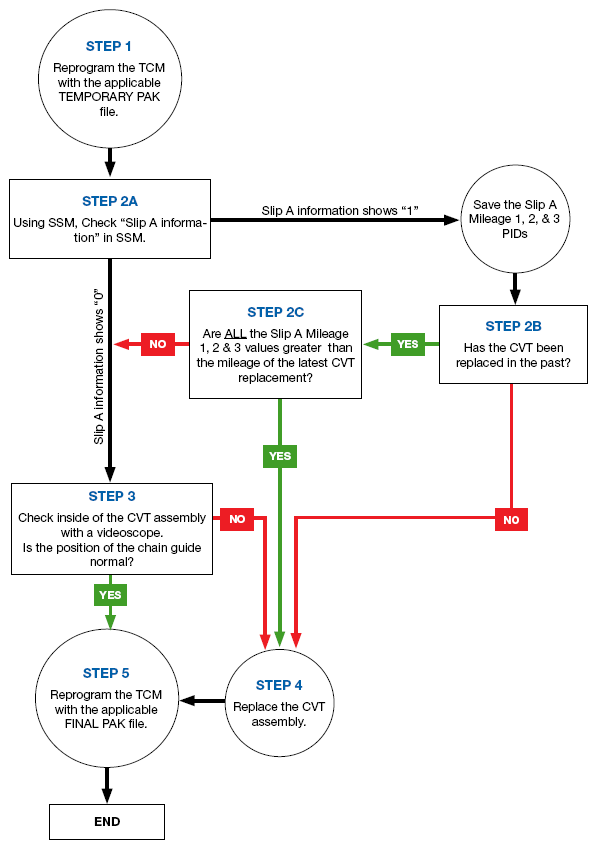

SERVICE PROCEDURE/INFORMATION

IMPORTANT NOTE: If any concerns are reported with CVT operation, complete this recall FIRST, and then proceed with related diagnosis if still needed.

The latest WRK-21_22 PAK files may help mitigate the Vibration & Possible Judder Concern on Turns Under Acceleration issue, that some cars may be experiencing. However, this WRK-21_22 service procedure cannot mitigate vibration and judder issues that require a mechanical repair procedure.

If vibration and/or judder issues remain after performing the WRK-21_22 service, proceed to TSBs 16-132-20R and 16-136-22R which provide the repair procedure to address vibrations and/or judder concerns.

STEP 1-A: Perform a DTC check of the TCM and confirm there are no current faults. Any previous faults must be diagnosed, repaired, and cleared prior to reprogramming. Reprogram the Transmission TCM with the TEMPORARY PAK file.

CAUTION: The following TEMPORARY PAK files are only to be used in the performance of this recall. Use outside of the performance of this recall is not authorized and not recommended. For concerns found outside of this recall, refer to and follow bulletin 16-132-20R.

TEMPORARY PAK FILES
Model	MY	Specification	PAK File Name	New ECM Part #	Old ECM Part #	Decryption Keyword	New CID Number
ASCENT	19	2.4L DIT CVT without CVTF cooler	QMBT-0141_30919AF98D.pak	30919AF98D	30919AF98A 30919AF98B 30919AF98C 30919AF98D	1A855E79	R8FEE800
	19	2.4L DIT CVT with CVTF cooler	QMBT-0141_30919AF99D.pak	30919AF99D	30919AF99A 30919AF99B 30919AF99C 30919AF99D	BF018535	R8FEF800
	20	2.4L DIT CVT without CVTF Air cooler	QMBT-0141_30919AH13E.pk2	30919AH13E	30919AH13A 30919AH13B 30919AH13C 30919AH13D 30919AH13E	2A8F4837	Q9FEE900
	20	2.4L DIT CVT with CVTF Air cooler	QMBT-0141_30919AH14E.pk2	30919AH14E	30919AH14A 30919AH14B 30919AH14C 30919AH14D 30919AH14E	43D63952	Q9FEF900
LEGACY	20	2.4L DIT CVT	QMBT-0141_30919AG75C.pk2	30919AG75C	30919AG75A 30919AG75B 30919AG75C	933736B4	C7FEC740
OUTBACK	20	2.4L DIT CVT	QMBT-0141_30919AG76C.pk2	30919AG76C	30919AG76A 30919AG76B 30919AG76C	CD3719E3	C7FEF740

NOTE: See Appendix A for additional information regarding control module reprogramming.

STEP 1-B: Display the following data using the Subaru Select Monitor (SSM4).

Switch the ignition switch to the OFF position, wait 30 seconds then switch back to the ON position.
IMPORTANT: Restart the SSM application after the TEMPORARY PAK file is installed.
Verify the VIN information is correct and select "Diagnosis".

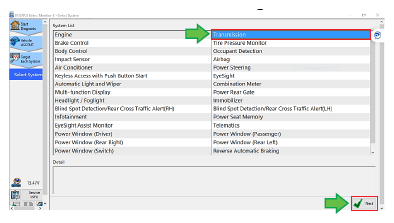

Select "Target Each System."
Select "Transmission" then select "Data Monitor".

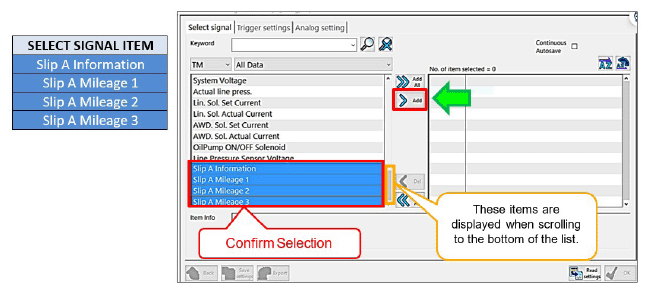

If required, click the "Delete All" button to move all items to the left side of the screen before making the selection. Scroll through the select signal list and confirm the "Slip A Information, Slip A Mileage 1, Slip A Mileage 2, and Slip A Mileage 3" items are selected (Blue Highlighted). Once the items are highlighted, click the "Add" button.

IMPORTANT: In the case of failed control module communication with SSM after the installation of the temporary PAK file, check and confirm the interface setting is matched to the equipment being used (SDI, DSTI, & DST 010).

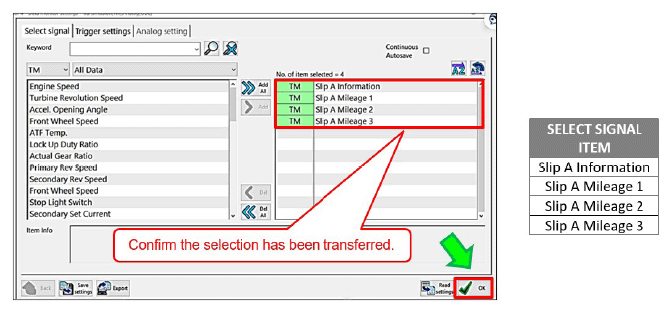

Confirm the selections are now transferred to the column on the right side. Continue by clicking the "OK" button.

STEP 2A: Determining the CVT chain slip data.

If CVT chain slip has been detected, the "Slip A Information" will display a value higher than zero and the mileage will be recorded in any of the three mileage monitor (Maximum, Minimum, Average) items.
If CVT chain slip is NOT detected, there will be a zero in all four mileage monitor items.

Review the "Slip A Information" value.

Select Signal Item	Value	Result	Next step
Slip A Information	0	CVT has no recorded slippage	Go to STEP 3
Slip A Information	1	Review the vehicle repair history	Go to STEP 2B

STEP 2B: Check the vehicle repair history and confirm if the vehicle has had any previous CVT replacements.

NOTE: For the best accuracy, always refer to the "out mileage" of the repair claim history.

Has the CVT assembly been previously replaced?

YES - Proceed to STEP 2C.

NO - Proceed to STEP 4.

STEP 2C: Compare the mileage of the latest CVT chain slip checked in STEP 2A with the mileage of the previous CVT assembly replacement.

NOTE: The Slip A Mileage values shown within the data will ALWAYS be in miles regardless of what unit is specified.

If the values of "Slip A Mileage 1, 2, and 3" are ALL greater than the mileage of the last CVT replacement, proceed to STEP 4.
If the values of "Slip A Mileage 1, 2, and 3" are NOT ALL greater than the mileage of the last CVT replacement, proceed to STEP 3.

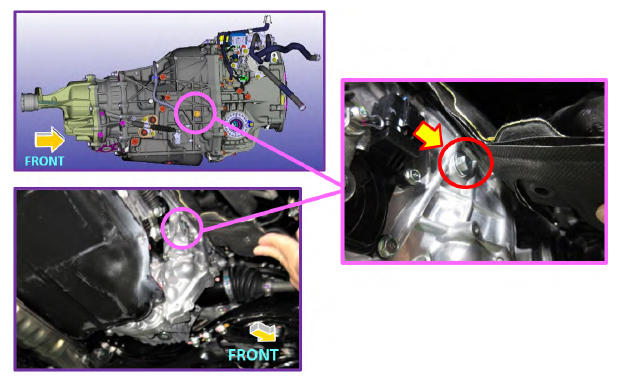

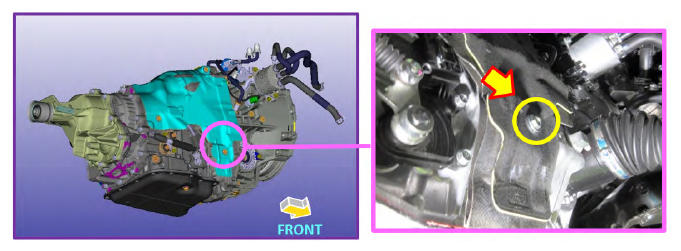

STEP 3A: Disconnect the vehicle from the SSM. Remove the 10mm bolt retaining the insulator cover on the right side of the CVT.

STEP 3B: CAREFULLY lift the insulation only as far as necessary to expose the plug as shown below.

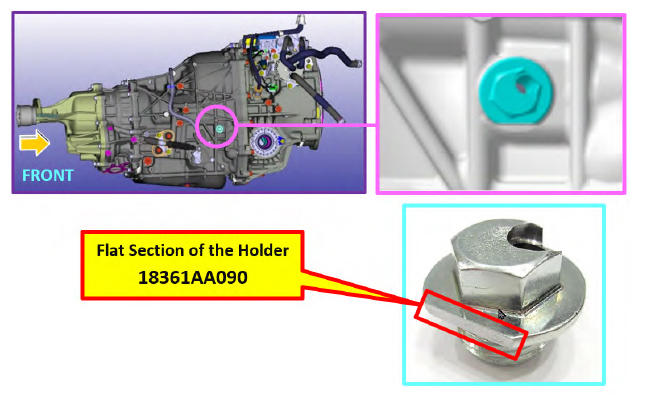

STEP 3C: Install and align the specialty plug/holder (18361AA090) as shown below.

The holder is designed to provide the proper insertion angle for the videoscope camera.

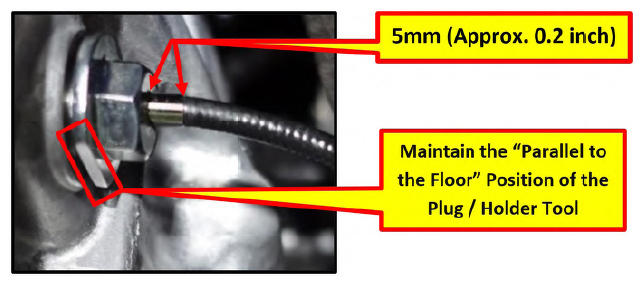

Install the tool by tightening the holder down BY HAND ONLY.
Slightly loosen the holder so the flat section of the tool is facing downward (parallel to the floor). See the example illustrations below.

NOTE: NEVER use any wrench, socket, etc. when tightening the plug/holder tool. Teflon Tape can be applied to the holder threads for added stability.

STEP 3D: Perform a visual inspection of the chain guide rail.

Make sure the OTC videoscope's threaded camera tip is screwed on tight prior to usage. Prepare the videoscope camera by measuring and marking approximately 5mm (0.2inch) from where the metal section of the scope tip meets the flexible portion. This section can be marked using a marker or tape. Use the example photos below as a guide.
Identify the top section of the scope camera lens while performing a function test of the videoscope. This can help for the scope view positioning.

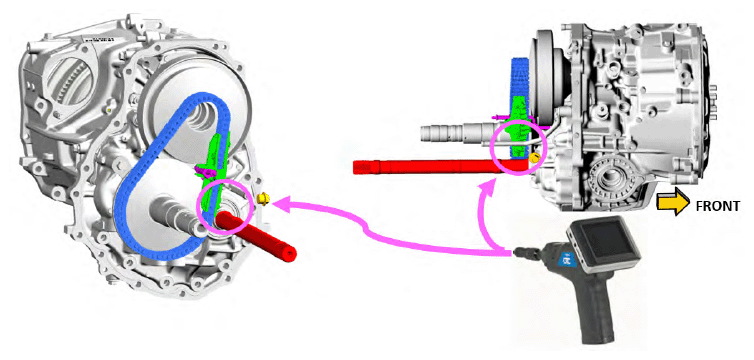

Insert the videoscope camera into the plug/holder up to the previously marked line

CRITICAL: To prevent any unwanted damage to the videoscope tip, ALWAYS use caution when inserting and removing the videoscope camera into the holder.

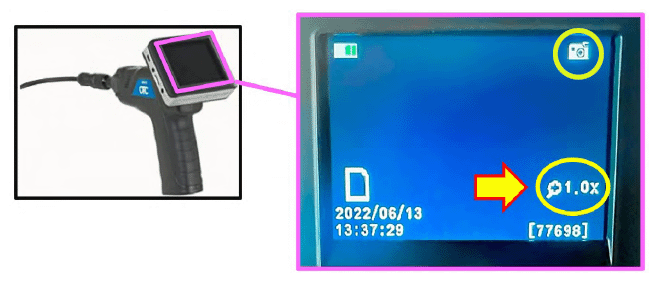

Set the magnification of the videoscope to 1.0.

STEP 3E: Inspect the position of the lower end of the chain guide rail and the drive pinion shaft.

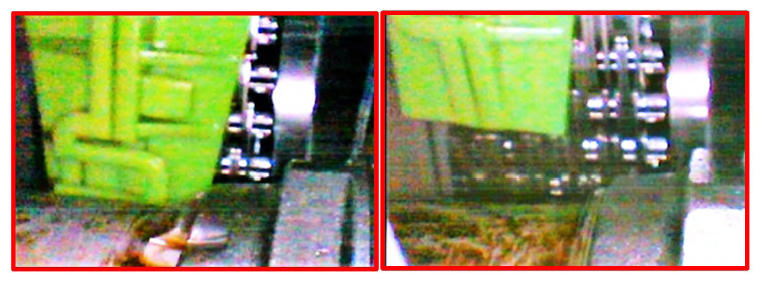

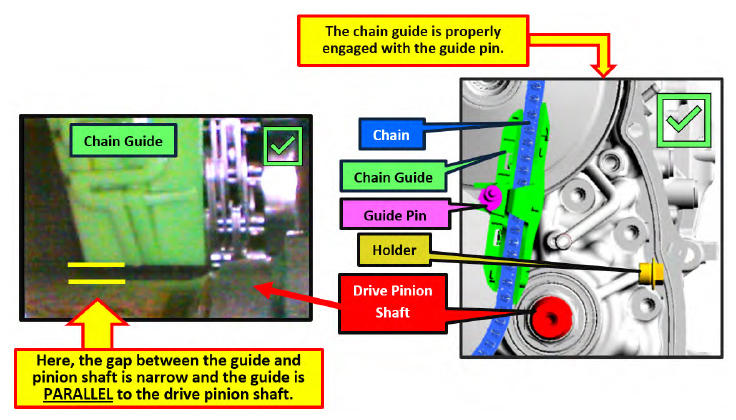

CORRECT GUIDE POSITIONING:

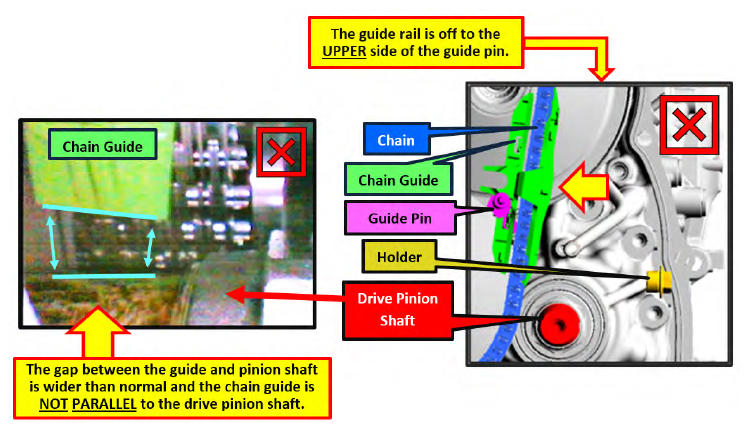

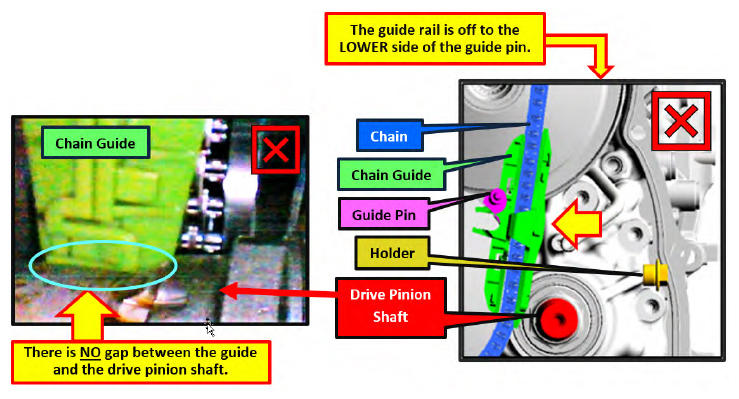

INCORRECT GUIDE POSITIONING 1:

INCORRECT GUIDE POSITIONING 2:

STEP 3F: Remove the holder (18361AA090).

Reinstall the original plug with a NEW gasket. Tightening torque: 35 N.m (25.8ft-lbs.)
Install the bolt retaining the insulator cover. Tightening torque: 8 N.m (5.9ft-lbs.)

STEP 3G: Using the inspection results from STEP 3E, see the table below to determine the next course of action.

Result	Next step
CORRECT POSITION	Proceed to STEP 5
INCORRECT POSITION 1 OR 2	Proceed to STEP 4A

STEP 4A: Replace the CVT assembly.

The service procedures for CVT assembly replacement remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time, every time. This includes but is not limited to important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.

Refer to STIS: Transmission/Transaxle > CONTINUOUSLY VARIABLE TRANSMISSION > Transmission Assembly > Removal/Installation

IMPORTANT NOTE: When replacing the CVT assembly, ALWAYS perform a transmission cooler flush as per the Claims Policies and Procedures Manual using SOA868V9255.

STEP 4B: Proceed to STEP 5.

STEP 5: Reprogram the TCM with the applicable PAK file. When reprogramming is complete, confirm there are no faults stored in the TCM.

WRK-21 FINAL PAK FILES
Model	MY	Specification	PAK file name	New ECU Part #	Old ECU Part #	Decryption Keyword	New CID Number
ASCENT	19	2.4L DIT CVT without CVTF cooler	30919AF98G.pak	30919AF98G	30919AF98F	6CB17BE5	R83EE000
	19	2.4L DIT CVT with CVTF cooler	30919AF99G.pak	30919AF99G	30919AF99F	1648933C	R83EF000
	20	2.4L DIT CVT without CVTF Air cooler	30919AH13H.pk2	30919AH13H	30919AH13G	B3DFD2E3	Q93EE100
	20	2.4L DIT CVT with CVTF Air cooler	30919AH14H.pk2	30919AH14H	30919AH14G	B5D0FB3D	Q93EF100
LEGACY	20	2.4L DIT CVT	30919AG75D.pk2	30919AG75D	30919AG75C	F7DE7793	C7FEC840
OUTBACK	20	2.4L DIT CVT	30919AG76D.pk2	30919AG76D	30919AG76C	C084BD9F	C7FEF840

NOTE: See Appendix A for additional information regarding control module reprogramming.

CAUTION: Confirm the ATF oil temp warning light stays off after all reprogramming has been performed.

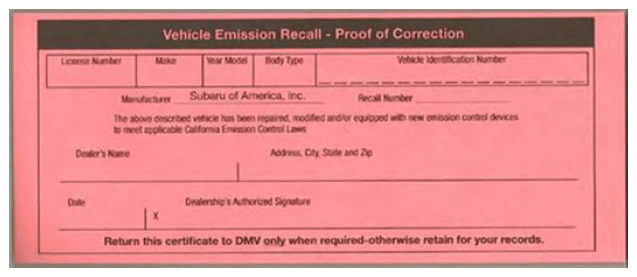

CALIFORNIA "VEHICLE EMISSION RECALL - PROOF OF CORRECTION" CERTIFICATE

The California Air Resources Board and the Department of Motor Vehicles Registration/Recall Program requires that all emission related Recall/Campaign or Service Program repairs be completed before a vehicle registration is renewed. Please provide owners of vehicles registered in the state of California a completed "Vehicle Emission Recall - Proof of Correction" certificate. Vehicle owners should be advised to retain this certificate because the California Department of Motor Vehicles may require they provide proof this service program repair has been completed. Additional certificates are available through normal parts ordering channels using part number MSA6P1301. Quantity 1 = 1 booklet of 50 certificates.

SERVICE PROGRAM IDENTIFICATION LABEL

Type or print the necessary information on a Campaign Identification Label. The completed label should be attached to the vehicle's upper radiator support. Additional labels are available through normal parts ordering channels. The part number is MSA6P1302, which comes as one sheet of 20 labels.

Part Number	Applicability	Description	Order Quantity
MSA6P1302	All Models	Campaign Completion Labels (contains one sheet of 20 labels)	1

CLAIM REIMBURSEMENT AND ENTRY PROCEDURES

Credit to perform this recall will be based on properly completed repair order information. Retailers may submit claims through Subarunet.com.

IMPORTANT: The Calibration Identification number (CID) for the FINAL programming (not the testing file) MUST be noted on the repair order as this information is required for claim submission.

Labor Description

Labor Operation #

Labor Time

Fail Code

Claim Type

TCM REPROGRAMMING, SSM DATA CHECK & VEHICLE INSPECTION WITH VIDEOSCOPE

A103-008

1.0

WRK-21

TCM REPROGRAMMING, SSM DATA CHECK & CVT ASSEMBLY REPLACEMENT/CVTF COOLER FLUSH AND PERFORM AT LEARNING PROCEDURE⁽¹⁾

A103-000

5.3

TCM REPROGRAMMING, SSM DATA CHECK, VEHICLE INSPECTION WITH VIDEOSCOPE & CVT ASSEMBLY REPLACEMENT/CVTF COOLER FLUSH AND PERFORM AT LEARNING PROCEDURE⁽¹⁾

A103-010

5.5

⁽¹⁾	Operations include time for necessary CVTF Cooler flushing. Please refer to 16-42-90R for further information.

IMPORTANT REMINDERS:

SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
Always refer to STIS for the latest service information before performing any repairs.

APPENDIX A

PRECAUTIONS

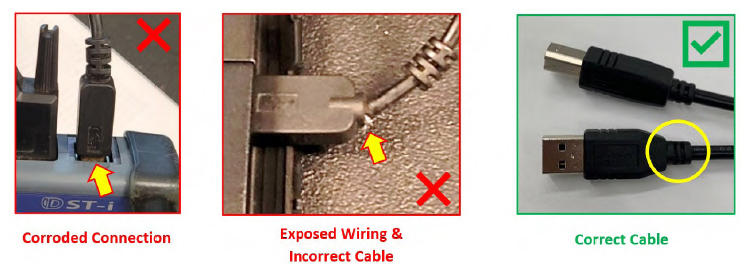

Confirm the PC being use for reprogramming is connected to a known good power source. Turn off any screen saver settings. Make sure the PC is not in power saving mode and is set to the normal power mode. Always inspect the DST-I/DST-010 and PC cables prior to programing. Confirm the cables are CORRECT and there is no exposed wiring, corroded connections, or loose fitment. See the example images below.

STEP A-1: Subaru of America, Inc. (SOA) highly recommends connecting either the Subaru Midtronics DCA-8000 Dynamic Diagnostic Charging System or the Subaru Midtronics GR8-100 Diagnostic Battery Charger to the vehicle and utilizing the Power Supply Mode feature to supply a stable 13.5 volts anytime a vehicle control module is being reprogrammed.

Once the Midtronics charger is connected to the vehicle, if the battery is fully charged, it takes less than three (3) minutes to boot-up the charger, select the Power Supply Mode, and have the battery voltage stabilized and ready for reprogramming.

NOTE:

For instructions on using the power supply mode, reference the applicable User Manual for the Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Midtronics GR8-1100 Diagnostic Battery Charger on STIS.
Confirm all electrical loads such as lights, audio, HVAC, seat heaters, and rear defroster are all switched OFF before setting up the charger for Power Supply Mode.
Select the correct battery type (Flooded, EFB, Gel, AGM, or AGM Spiral).
Input the CCA which matches the vehicle's battery.
NOTE: OE and replacement batteries have different CCA ratings. Always confirm the battery's CCA rating before proceeding.
If using a DCA-8000 Dynamic Diagnostic Charging System, set the power supply voltage to 13.5 volts.
DO NOT connect the DST-I, DST 010, or SDI until the Power Supply mode function has completed its battery test mode and the Charging Voltage has dropped to and shows a steady 13.5 Volts on the display.
Once Power Supply Mode reaches a steady 13.5 volts, connect the DST-I, DST 010, or SDI to the OBD connector and proceed with initiating the normal FlashWrite reprogramming process.
Amperage will fluctuate based upon the vehicle's demand for power.
NOTE: If the voltage rises beyond 14V while programming is in process, the procedure will abort. This can indicate a need to test or charge the vehicle battery before any further attempt at programming is made.

VERY IMPORTANT:

This information is applicable to the Subaru Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Subaru Midtronics GR8-1100 Diagnostic Battery Charger ONLY. It does not apply to any other brand/type of "generic" battery charger whatsoever. ONLY the DCA-8000 and the GR8-1100 and their Power Supply Mode feature have been tested and approved by SOA.

REMINDER: If the DCA-8000 or GR8-1100 indicates the vehicle's battery must be charged, charge it fully using the DCA-8000 or GR8-1100 before proceeding to reprogram the vehicle using the Power Supply Mode.

NOTE:

Control module failures resulting from battery discharge during reprogramming are not a matter for warranty. Should any DTCs reset after the reprogramming update is performed, diagnose per the procedure outlined in the applicable Service Manual.
IMPORTANT: The FINAL Calibration Identification number (CID) for the FINAL programming (not the testing file) MUST be noted on the repair order as this information is required for claim submission.
The testing and FINAL pack file listings provided in this bulletin are the latest available at the time of publishing. Updates are often released thereafter without revision to the original bulletin. For this reason, it is critical to always have the latest version of Select Monitor software installed on your system. You can confirm if a later version is available by entering the CID listed in this bulletin into FlashWrite. If a newer CID is shown as available in FlashWrite, reprogram using that file.
AT Learning Procedure is ONLY required with CVT replacement.

STEP A-2: (ONLY IF THE CVT HAS BEEN REPLACED) Using the SSM4, clear the AT Learning Data using the following procedure:

Start > Diagnosis > Vehicle Selection > Each System > Transmission > Work Support > Clear AT Learning Data.
Click "YES" and when "Execute Clear AT Learning" is displayed, click "YES" again.
Turn the ignition OFF, wait at LEAST 30 seconds then turn the ignition back ON. At this point, the AT Temp light will start blinking; 4 times in 2 seconds to signify the Clear AT Learning procedure has completed successfully. If the AT Temp light does not flash as described, repeat Step 2 again from the beginning.

Error Code Information:

In the event of an unsuccessful reprogramming attempt, an error code may be displayed. The table below lists the description of the codes and the correct course of action if encountered.

No	Error Code	Content	Procedure
1	00000001	Parameter Error	Confirm the software version has been updated. If the software has been updated successfully, ignore this error code, and clear the fault memory. If not, make ONE attempt to reprogram.
2	00000009	Communication Error	Turn ignition switch off and wait 10 seconds. Turn on the ignition switch. Resume the reprogramming work without exiting the FlashWrite2 at password entry screen.
3	00000281	Star Download Error
4	00000282	Data Transfer Error
5	00000283	Transfer Complete Error
6	00000284	Checksum Error
7	00000270	Unit Confirmation Error	Confirm the reprogramming precautions & requirements are fully meet. If there is no problem, turn ignition switch off and wait for 10 seconds. Turn on the ignition switch. Exit FlashWrite 2 and start it from the beginning.

OWNER NOTIFICATION LETTER

URGENT

IMPORTANT SAFETY RECALL

This notice applies to the VIN below

Subaru of America, Inc

PO Box 9103

Camden, NJ 08101-9877

844-373-6614

www.subaru.com

Subaru Safety Recall WRK-21

NHTSA Recall ID 21V-955

February 2022

Interim Notification

Dear Subaru Owner:

This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.

Subaru of America, Inc. (Subaru) has decided that a defect, which relates to motor vehicle safety, exists in certain 2019-2020 model year Ascent vehicles and certain 2020 Legacy and Outback vehicles.

You received this notice because our records indicate that you currently own one of these vehicles.

DESCRIPTION OF THE DEFECT AND SAFETY RISK

Due to a programming error in the transmission control unit (TCU), the drive chain may slip, resulting in breakage of the chain guide. If the drive chain guide breaks, resulting fragments could inhibit the shift select mechanism. If the vehicle continues operation with the drive chain slipping, over time the drive chain could break.

If the drive chain breaks while the vehicle is in motion, the vehicle may experience a loss of motive power, increasing the risk of a crash.

WHAT YOU SHOULD DO

Subaru is in the process of acquiring the tools and reprogramming files necessary to perform this repair and expects to have a sufficient supply available in May. Once the repair is available, Subaru will contact you again by mail advising you to proceed with scheduling an appointment with your Subaru retailer (dealer).

WHAT SUBARU WILL DO

Once the tools and reprogramming files are available to perform this repair, your Subaru retailer will reprogram the TCU. The historical TCU data will be analyzed for chain slip characteristics and the chain guide will be visually inspected. If the vehicle is confirmed to have experienced drive chain slip or if the chain guide is damaged, the transmission assembly will be replaced. All remedy repairs necessary will be completed at no cost to you.

OWNER INFORMATION

Government regulations require that recall notifications be sent to the last known owner of record. That information is based primarily on state registration and title data. If you are a lessor of this vehicle, federal regulations require you to forward this notice to your lessee within ten days.

If you have moved or sold your vehicle, please update this information online at www.subaru.com, select 'Customer Support,' then select 'Address Update' or 'Ownership Update' from the "Quick Links" menu.

IF YOU HAVE PREVIOUSLY PAID FOR A REPAIR

If you have already paid for repairs associated with this condition, you may be eligible for reimbursement. Reimbursement consideration will be based on the amount an authorized Subaru retailer in your area would charge for the same repair.

Please send the original service repair order, which has the name of the repair facility, date of repair, mileage at the time of repair, complete 17-digit vehicle identification number (VIN), and your name, with correct mailing address and telephone number to the address listed below.

Subaru of America, Inc.

Customer-Retailer Services Department, Attention: WRK-21 Recall

P.O. Box 9103, Camden, NJ 08101-9877

Please send original receipts only and retain a photocopy for your records. Please be assured that we will attempt to process your reimbursement request as quickly as possible, but it may take up to 60 days for this process to be completed.

IF YOU NEED FURTHER ASSISTANCE:

To locate the nearest Subaru retailer, you can access our website at www.subaru.com and select 'Find a Retailer.'

For additional information, please go to: http://www.wrk21.service-campaign.com.

If you need additional assistance, please contact us directly:

By e-mail: Go to www.subaru.com and select "Customer Support"
By telephone: 1-844-373-6614
Monday through Friday between 8:00 a.m. and 7:00 p.m. ET
By U.S. Postal mail: Write us at Subaru of America, Inc.
Attn: Customer-Retailer Services Department

P.O. Box 9103, Camden, NJ 08101-9877

To subscribe to the NHTSA Recall Notification email System, please go to: https://www-odi.nhtsa.dot.gov/nhtsa/subscriptions.

Please contact us immediately if the Subaru retailer fails or is unable to make the necessary repairs free of charge.

You may also contact the Administrator, National Highway Traffic Safety Administration (NHTSA), 1200 New Jersey Ave., SE, Washington, DC 20590 or call the toll-free Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153) or go to http://www.safercar.gov if you believe the Subaru retailer has failed or is unable to remedy your vehicle without charge within a reasonable amount of time.

Your continued satisfaction with your Subaru is important to us. Please understand that we have taken this action in the interest of your safety and your vehicle's proper operation. We sincerely apologize for any inconvenience this matter may cause and urge you to schedule an appointment once you are notified that the remedy is available.

Sincerely,

Subaru of America, Inc.

A subsidiary of SUBARU CORPORATION

OWNER NOTIFICATION LETTER

URGENT

IMPORTANT SAFETY RECALL

This notice applies to the VIN below

Subaru of America, Inc

PO Box 9103

Camden, NJ 08101-9877

844-373-6614

www.subaru.com

Subaru Safety Recall WRK-21

NHTSA Recall ID 21V-955

February 2022

Interim Notification

Dear Subaru Owner:

This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.

Subaru of America, Inc. (Subaru) has decided that a defect, which relates to motor vehicle safety, exists in certain 2019-2020 model year Ascent vehicles and certain 2020 Legacy and Outback vehicles.

You received this notice because our records indicate that you currently own one of these vehicles.

This recall replaces Subaru's previous WUV-07 recall issued in January 2020 for certain 2019 model year Ascent vehicles. Vehicles affected by the previous recall must return to complete the WRK-21 recall repair, even if the previous recall repair was complete.

DESCRIPTION OF THE DEFECT AND SAFETY RISK

If the drive chain breaks while the vehicle is in motion, the vehicle may experience a loss of motive power, increasing the risk of a crash.

WHAT YOU SHOULD DO

As mentioned above, vehicles affected by the previous recall must return to complete the WRK-21 recall repair, even if the previous recall repair was completed.

WHAT SUBARU WILL DO

OWNER INFORMATION

IF YOU HAVE PREVIOUSLY PAID FOR A REPAIR

Subaru of America, Inc.

Customer-Retailer Services Department, Attention: WRK-21 Recall

P.O. Box 9103, Camden, NJ 08101-9877

IF YOU NEED FURTHER ASSISTANCE:

To locate the nearest Subaru retailer, you can access our website at www.subaru.com and select 'Find a Retailer.'

For additional information, please go to: http://www.wrk21.service-campaign.com.

If you need additional assistance, please contact us directly:

By e-mail: Go to www.subaru.com and select "Customer Support"
By telephone: 1-844-373-6614
Monday through Friday between 8:00 a.m. and 7:00 p.m. ET
By U.S. Postal mail: Write us at Subaru of America, Inc.
Attn: Customer-Retailer Services Department

P.O. Box 9103, Camden, NJ 08101-9877

To subscribe to the NHTSA Recall Notification email System, please go to: https://www-odi.nhtsa.dot.gov/nhtsa/subscriptions.

Please contact us immediately if the Subaru retailer fails or is unable to make the necessary repairs free of charge.

Sincerely,

Subaru of America, Inc.

A subsidiary of SUBARU CORPORATION

OWNER NOTIFICATION LETTER

URGENT

IMPORTANT SAFETY RECALL

This notice applies to the VIN below

Subaru of America, Inc

PO Box 9103

Camden, NJ 08101-9877

844-373-6614

www.subaru.com

Subaru Safety Recall WRK-21

NHTSA Recall ID 21V-955

September 2022

Dear Subaru Owner:

This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.

Subaru of America, Inc. (Subaru) has decided that a defect, which relates to motor vehicle safety, exists in certain 2019-2020 model year Ascent vehicles and certain 2020 Legacy and Outback vehicles.

You previously received a letter informing you of this recall, stating that the tools and reprogramming files necessary to perform this repair were not yet available.

This letter is to inform you that the tools and reprogramming files are now available .

DESCRIPTION OF THE DEFECT AND SAFETY RISK

If the drive chain breaks while the vehicle is in motion, the vehicle may experience a loss of motive power, increasing the risk of a crash.

WHAT YOU SHOULD DO

Please contact your Subaru retailer (dealer) immediately for an appointment to have this repair performed, at no cost to you.

WHAT SUBARU WILL DO

Your Subaru retailer will reprogram the TCU. The historical TCU data will be analyzed for chain slip characteristics and the chain guide will be visually inspected. If the vehicle is confirmed to have experienced drive chain slip or if the chain guide is damaged, the transmission assembly will be replaced. All remedy repairs necessary will be completed at no cost to you.

Additionally, in cases where the CVT transmission assembly is not replaced as part of this recall, Subaru will extend the Powertrain Limited Warranty as it applies to the CVT specific to the chain slip condition. The extended coverage period will run from the vehicle's original warranty start date and end after ten (10) years or one hundred thousand (100,000) miles, whichever comes first. The extension will be applied only after the recall repair is completed and will cover replacement of a CVT assembly failed as a result of CVT chain slip only once during the 10 years/100,000 miles parameters of this extension.

HOW LONG WILL THE REPAIR TAKE?

The time required for this repair will vary depending on the services required. The repair time will range from approximately one hour up to approximately six hours if the transmission needs to be replaced. Your retailer can provide you with a better estimate of the overall time for this service visit, as it may be necessary to leave your vehicle for a longer period of time on the day of your scheduled appointment to allow your Subaru retailer flexibility in scheduling.

For your convenience, your retailer may provide you with a loaner or rental vehicle, at no cost to you, until the repair is complete.

OWNER INFORMATION

If you have moved or sold your vehicle, please go to https://www.subaru.com/support/customer-support.html to send us your information.

CALIFORNIA REGISTERED OWNERS

The California Air Resources Board requires that emission related campaigns be completed prior to California's vehicle registration renewal process; without this repair, you will not be able to register your vehicle during your next annual registration. Upon completion of this campaign, your California dealer will complete and provide you a "Proof of Correction Certificate." If required, present the certificate to the California Department of Motor Vehicles (the "DMV") when renewing your California registration as proof of campaign completion. If the DMV does not request the certificate, we recommend that you keep it for your records.

In addition, the State of California requires that every vehicle must pass an emission test (SMOG Check) every two years and before it is sold. Without the repair we are providing at no charge, your vehicle may not pass this test.

IF YOU HAVE PREVIOUSLY PAID FOR A REPAIR

Subaru of America, Inc.

Customer Advocacy Department, Attention: WRK-21 Recall

P.O. Box 9103, Camden, NJ 08101-9877

IF YOU NEED FURTHER ASSISTANCE:

To locate the nearest Subaru retailer, you can access our website at www.subaru.com and select 'Find a Retailer.'

For additional information, please go to: http://www.wrk21.service-campaign.com.

If you need additional assistance, please contact us directly:

By e-mail: Go to www.subaru.com and select "Customer Support"
By telephone: 1-844-373-6614
Monday through Friday between 8:00 a.m. and 7:00 p.m. ET
By U.S. Postal mail: Write us at Subaru of America, Inc.
Attn: Customer Advocacy Department

P.O. Box 9103, Camden, NJ 08101-9877

To subscribe to the NHTSA Recall Notification email System, please go to: https://www-odi.nhtsa.dot.gov/nhtsa/subscriptions.

Please contact us immediately if the Subaru retailer fails or is unable to make the necessary repairs free of charge.

Sincerely,

Subaru of America, Inc.

A subsidiary of SUBARU CORPORATION

OWNER NOTIFICATION LETTER

URGENT

IMPORTANT SAFETY RECALL

This notice applies to the VIN below

Subaru of America, Inc

PO Box 9103

Camden, NJ 08101-9877

844-373-6614

www.subaru.com

Subaru Safety Recall WRK-21

NHTSA Recall ID 21V-955

August 2022

Dear Subaru Owner:

This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.

Subaru of America, Inc. (Subaru) has decided that a defect, which relates to motor vehicle safety, exists in certain 2019-2020 model year Ascent vehicles and certain 2020 Legacy and Outback vehicles.

You previously received a letter informing you of this recall, stating that the tools and reprogramming files necessary to perform this repair were not yet available.

This letter is to inform you that the tools and reprogramming files are now available .

DESCRIPTION OF THE DEFECT AND SAFETY RISK

If the drive chain breaks while the vehicle is in motion, the vehicle may experience a loss of motive power, increasing the risk of a crash.

WHAT YOU SHOULD DO

Please contact your Subaru retailer (dealer) immediately for an appointment to have this repair performed, at no cost to you.

WHAT SUBARU WILL DO

HOW LONG WILL THE REPAIR TAKE?

For your convenience, your retailer may provide you with a loaner or rental vehicle, at no cost to you, until the repair is complete.

OWNER INFORMATION

If you have moved or sold your vehicle, please go to https://www.subaru.com/support/customer-support.html to send us your information.

CALIFORNIA REGISTERED OWNERS

IF YOU HAVE PREVIOUSLY PAID FOR A REPAIR

Subaru of America, Inc.

Customer Advocacy Department, Attention: WRK-21 Recall

P.O. Box 9103, Camden, NJ 08101-9877

IF YOU NEED FURTHER ASSISTANCE:

To locate the nearest Subaru retailer, you can access our website at www.subaru.com and select 'Find a Retailer.'

For additional information, please go to: http://www.wrk21.service-campaign.com.

If you need additional assistance, please contact us directly:

By e-mail: Go to www.subaru.com and select "Customer Support"
By telephone: 1-844-373-6614
Monday through Friday between 8:00 a.m. and 7:00 p.m. ET
By U.S. Postal mail: Write us at Subaru of America, Inc.
Attn: Customer Advocacy Department

P.O. Box 9103, Camden, NJ 08101-9877

To subscribe to the NHTSA Recall Notification email System, please go to: https://www-odi.nhtsa.dot.gov/nhtsa/subscriptions.

Please contact us immediately if the Subaru retailer fails or is unable to make the necessary repairs free of charge.

Sincerely,

Subaru of America, Inc.

A subsidiary of SUBARU CORPORATION
