USB MAP DATA UPDATE PROCEDURE FOR DENSO GEN 4 NAVIGATION EQUIPPED SYSTEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): 15-268-20R, Date of Issue: March 15, 2023

SUBARU:

2020-2023 Legacy and Outback; 2023 Ascent; 2022-2023 WRX and WRX-STI

APPLICABILITY

Gen 4 Denso CP1 System:

2020MY-2023MY Legacy and Outback

2023MY Ascent

2022MY-2023MY WRX and WRX-STI

INTRODUCTION

Starting January 17, 2020 the first TomTom map update for Gen 4 Denso CP1 navigation equipped vehicles was made available. While the map update process is user friendly, we ask that retailers assist customers with the map update download, if requested, as a courtesy and an opportunity to build retailer loyalty, ensure customer retention and keep with the Love Promise. Retailers may also want to install this map update on any certified pre-owned or pre-owned vehicles in their inventory. Retailers are welcome to do this on their own. Retailers can use the site (dealer.subaru-maps.com) which is unique for retailers and not the same as what customers will be using at home. If the retailer service, sales, and/or parts managers do not have a login, please create an account from this page. You might have to wait for an approval email, once your retailer email has been approved.

MATERIALS REQUIRED

Windows PC or MAC
A valid e-mail address to register in website
Subaru VIN planning to update
USB 2.0 or 3.0 drive, at least 64GB in size (we recommend SanDisk®, Kingston®, Transcend® or Verbatim® brands)

SERVICE PROCEDURE/INFORMATION

NOTE: Gen 4 map installation is independent of any software update. Unlike Gen 3/Gen 3.1 Harman map updates, there is no software installation as part of the Gen 4 map updates.

CAUTION: VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intended for use by professional technicians ONLY. They are written to inform those technicians of conditions that may occur in some vehicles, or to provide information that could assist in the proper servicing of the vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do the job correctly and safely. If a condition is described, DO NOT assume that this Service Bulletin applies to your vehicle, or that your vehicle will have that condition.

Subaru of America, Inc. is ISO 14001 Compliant

ISO 14001 is the international standard for excellence in Environmental Management Systems. Please recycle or dispose of automotive products in a manner that is friendly to our environment and in accordance with all local, state and federal laws and regulations.

Step 1: Prepare the USB with the Map Data:

Go to https://subaru-maps.com/#/vehicles.

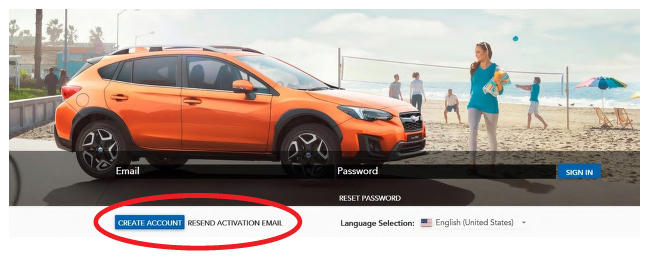

Create an Account. You'll have to verify your email address to complete this process.
Download and install the Map Downloader app for Mac or PC using the link on subaru-maps.com.

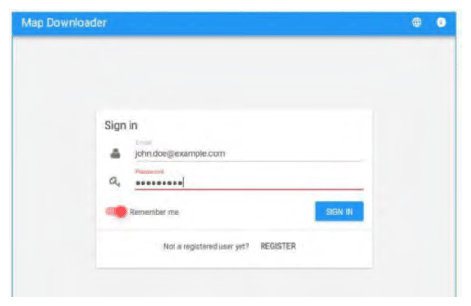

Open the app and login with your newly created account.

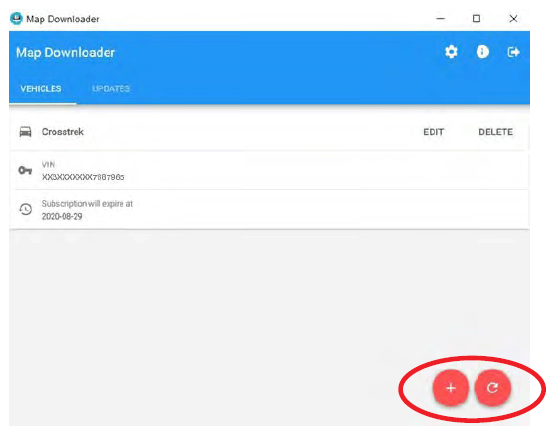

Press the "+" button on the bottom right to add a vehicle using your VIN number.
Select the Updates tab to see available updates for your Subaru.

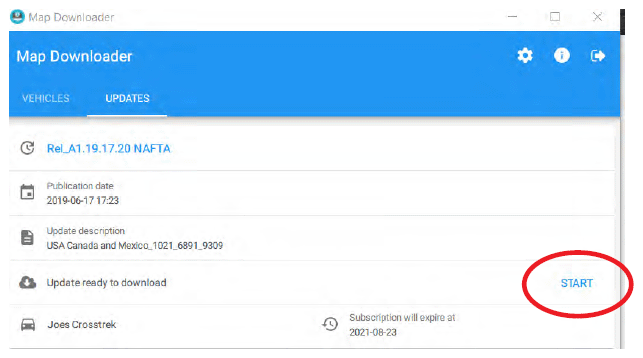

If there is an update available, select Start to begin the download.

Please note, this might take a little while to complete as the map files are large.

When the download is complete, plug in the USB drive into your computer.

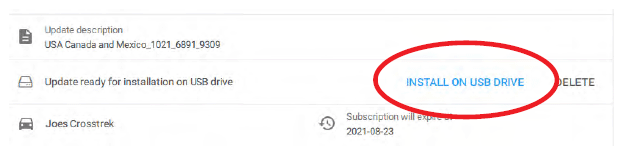

Select Install on USB Drive.

Please note, all data on the USB will be deleted.

Once complete, Remove the USB from your computer and go to your vehicle.
CAUTION:
- Move the vehicle to an outside location where the engine can be safely started and kept idling during the update process.
- Never idle the vehicle in a closed space such as a garage even if the garage door is open.
- Once the vehicle is in a safe location, be sure the vehicle is in Park if CVT or Neutral if MT and the parking brake is fully engaged.
- Unplug any devices, cables or other USBs from the vehicles USB ports.

Step 2. H/U Map Update:

Start the engine. Allow the audio unit to completely start up by pressing the "I Agree" button when it appears and waiting at least 30 more seconds before proceeding.
Plug the map update USB into your vehicle's front USB ports

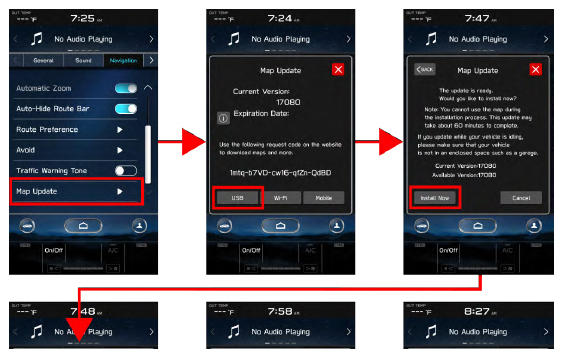

Select "Settings" on your infotainment screen

Select "Navigation" and then select "Map Update"

Select "USB" and Select "Install Now"

NOTE: you can press the home button and continue using your infotainment system, while the update is installing. You can also drive the vehicle if needed. Please note that the navigation system will not be operational during the update process.

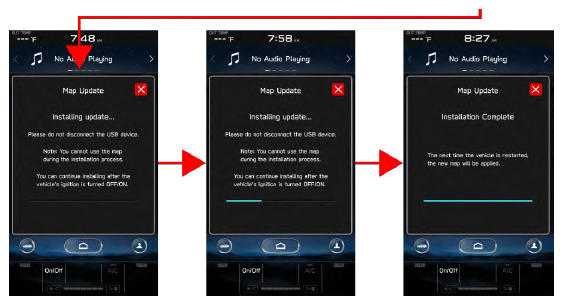

Once complete, you can remove the USB. Please restart your vehicle to complete the process.
