Disposal Of Pretensioner: Procedure

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  • Before discarding a pretensioner, always perform an activation process to prevent any false activation.
  • Wear protective gloves, safety goggles and earplugs during this operation. Wash your hands afterwards.
  • Do not touch the pretensioner just after activation because it is very hot. Before handling it for disposal, wait for 40 minutes.
  • Perform a pretensioner operation process in a safe, level place. Do not perform the process outdoors when there is a strong rain or wind.
  • Perform front seat belt operation process at each location one after another. Do not perform operation process simultaneously on front pretensioner, lap pretensioner and adaptive force limiter.
  • Do not drop or damage the pretensioner.
  • A large explosive noise will occur when the pretensioner is deployed. Warn persons in the area, and do not allow anyone to approach a radius of 5 m (16 ft) from the discard location.
  • After activating the pretensioner, smoke may arise. Therefore, always perform an operation process in a well-ventilated place without any smoke sensor.
  • Do not expose the activated pretensioner to water.
  • Wrap the activated pretensioner in a sealed vinyl bag when discarding.
  • If it is impossible to perform a pretensioner activation process due to some situational reasons, consult SUBARU dealership or one of the authorized workshops.
  1. Fold the backrest all the way forward, and move the front seat all the way forward.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Disconnect connector of the pretensioner.

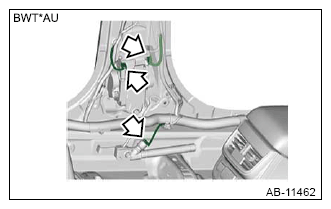

    • Front
      G13951892Courtesy of SUBARU OF AMERICA, INC.
    • Rear

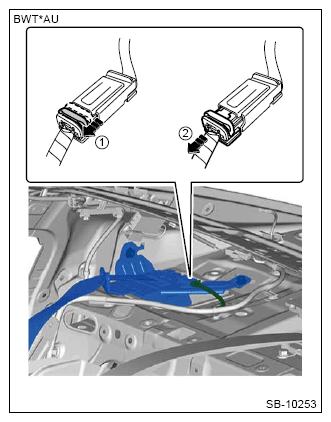

    • Sedan model
      G13951893Courtesy of SUBARU OF AMERICA, INC.

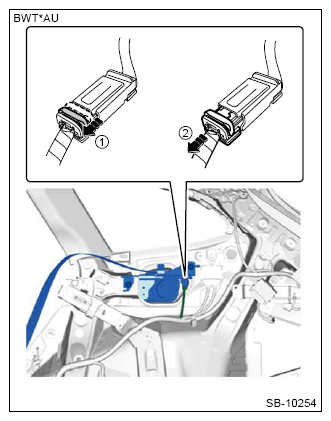

    • OUTBACK model
    G13951894Courtesy of SUBARU OF AMERICA, INC.
  4. Activate each pretensioner.

    Preparation tool:

    ST1: AIRBAG DEPLOYMENT TOOL (98299PA030)

    ST2: TEST HARNESS ADAPTER D (98299SA010)

    Front pretensioner

    Adaptive force limiter

    ST3: TEST HARNESS ADAPTER F (98299SA050)

    Lap pretensioner

    ST4: TEST HARNESS ADAPTER AM (98299FJ000)

    Rear pretensioner

    1. Short the ST1 alligator clip to the terminal.
      CAUTION: Short ST1 terminals until just before the pretensioner operation process.

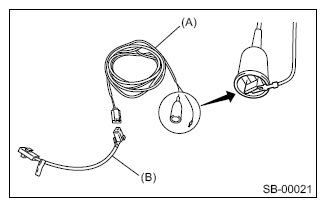

    2. Connect ST1 (A) and ST2, ST3 or ST4 (B) to the connector for the gas generator on which to perform operation process.
      G13951895Courtesy of SUBARU OF AMERICA, INC.
    3. Connect the connector of ST2, ST3, or ST4 to the pretensioner or adaptive force limiter.
    4. Make sure there is no one inside the vehicle.

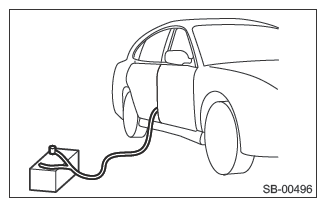

    5. Extend the wiring of ST1 to the limit, and close all the windows and sunroof completely.
      G13951896Courtesy of SUBARU OF AMERICA, INC.
    6. Move the battery 5 m (16 ft) or more from the vehicle, and affix nearby.

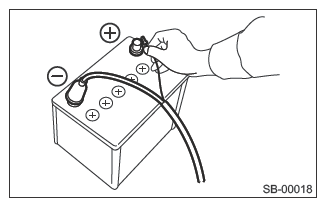

    7. Connect the ST1 alligator clip to the battery negative (-) terminal.
    8. Connect the other cable of ST1 to the battery positive (+) terminal, and activate the pretensioner.
    CAUTION:
    • After activation, the pretensioner will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
    • Do not expose the activated pretensioner to water.
    G13951897Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the seat belt outer.

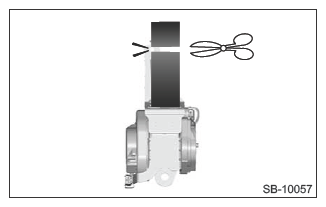

  6. Cut the seat belt at a position as close as possible to the seat belt retractor.
    G13951898Courtesy of SUBARU OF AMERICA, INC.

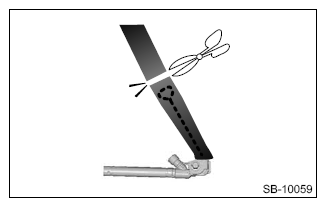

  7. Cut the seat belt at a position as close as possible to the lap seat belt pretensioner.
    G13951899Courtesy of SUBARU OF AMERICA, INC.

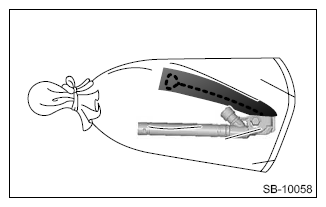

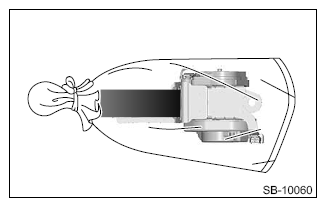

  8. Place the activated pretensioner in a sealed vinyl bag, then discard.
G13951900Courtesy of SUBARU OF AMERICA, INC.
G13951901Courtesy of SUBARU OF AMERICA, INC.
