Belt Assembly Front Inn

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Before installation, make sure that the correct part is used.
During installation, make sure that the seat belts are not twisted.
Make sure that the seat belt harness is not caught anywhere. Wrong harness rooting may cause the harness short from pinch.
Do not forget the spring wave washer, when installing the belt assembly front INN.

Install the belt assembly front INN.

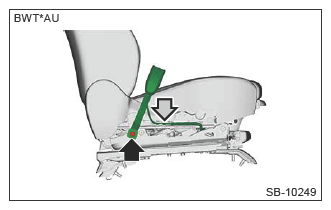

1. Install the spring wave washer, belt assembly front INN and nut in order and then tighten the nut.
  Tightening torque:

  38 N.m (3.9 kgf-m, 28.0 ft-lb)
2. Locate the seat belt harness and retain it with a harness clip.
NOTE: For details about harness routing behind the seat, refer to "SEATS" article. Ref. to SEATS>FRONT SEAT>ASSEMBLY>CONNECTOR AND HARNESS .

Courtesy of SUBARU OF AMERICA, INC.
Install the seat assembly to the body. Ref. to SEATS>FRONT SEAT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
If the passenger's seat is removed, perform [Rezeroing] in the occupant detection system. Ref. to AIRBAG (DIAGNOSTICS)>REZERO .
For model with door mirror interlocked seat position memory, initialize the seat position memory control module. Ref. to SEATS>POWER SEAT SYSTEM>ADJUSTMENT .
