Belt Assembly Front Inn

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For models with the power seat, move the seat to the front-most position before removing the ground terminal from the battery sensor.
  2. Remove the front seats. Ref. to SEATS>FRONT SEAT>REMOVAL .
  3. Remove the belt assembly front INN.

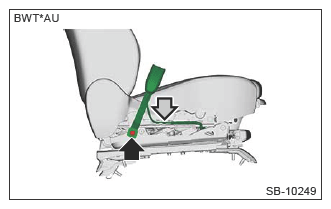

    1. Remove the clip for the seat belt harness located under the seat cushion.
    2. Remove the nut, and then remove the belt assembly front INN.
NOTE: For details about harness routing behind the seat, refer to "SEATS" article. Ref. to SEATS>FRONT SEAT>ASSEMBLY>CONNECTOR AND HARNESS .
G13951871Courtesy of SUBARU OF AMERICA, INC.
