Electric Power Steering Gearbox: Disassembly

NOTE: When fixing the steering gearbox assembly in a vise, apply a wooden piece on the flange portion.
  1. Remove the tie-rod end (a) and lock nut (b) from the steering gearbox assembly.
  2. Remove the clip boot tie-rod (c) located outside the boot steering gearbox using the pliers, and then slide the boot steering gearbox to the tie-rod end side.

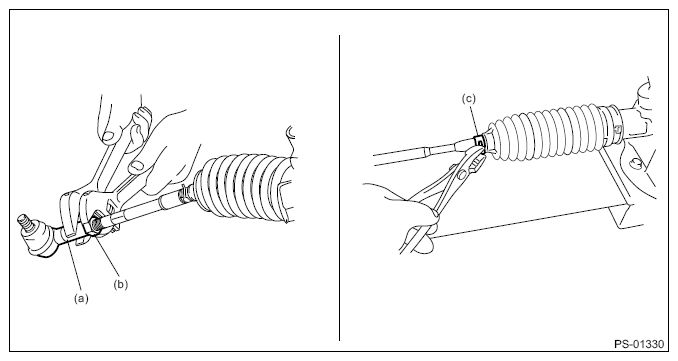

    G13951536Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the tie-rod (b) from the gearbox assembly.
    1. Using a flat tip screwdriver, remove the band boot (a) from the boot steering gearbox.
      NOTE: Replace the boot steering gearbox or the band boot (a) if there is damage, cracks or deterioration.
    2. Remove the tie-rod (b).

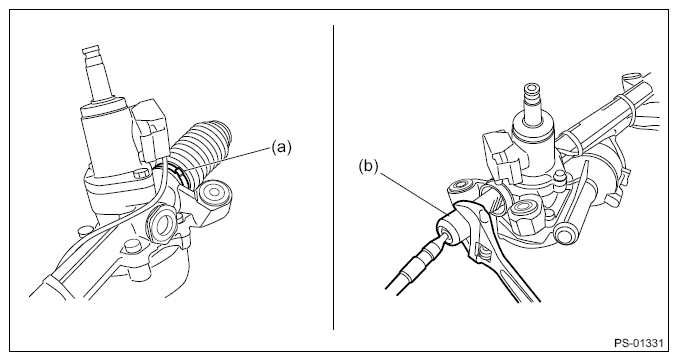

    G13951537Courtesy of SUBARU OF AMERICA, INC.
