Steering Column: Installation

CAUTION:

When removing, installing or replacing the VDCCM and H/U, VDCCM and H/U bracket, steering wheel or steering angle sensor (steering roll connector), perform "VSC(VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

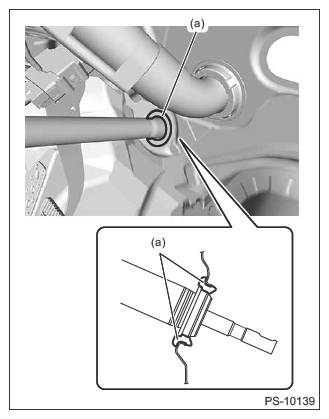

Install the bushing (a) to the toe board from the passenger compartment side.

Courtesy of SUBARU OF AMERICA, INC.
Insert the end of the column assembly steering into the toe board bushing.
Tighten the column assembly steering installation nut located under the beam steering COMPL with the tilt lever fixed.
Tightening torque:

20 N.m (2 kgf.m, 14.8 ft.lb)
Install the ignition key lock. Ref. to SECURITY AND LOCKS>IGNITION KEY LOCK>REPLACEMENT .
Install the universal joint assembly steering Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>INSTALLATION .
CAUTION:
- Always install the universal joint assembly steering after installing the steering column to avoid damage to the universal joint assembly steering.
- Be sure to follow the tightening order and tightening torque of the universal joint assembly steering to avoid the steering effort from becoming heavy. After confirming that the steering column position is in the neutral position, tighten the universal joint assembly steering.
Install the switch assembly combination.
Align the center position of the steering roll connector Ref. to AIRBAG SYSTEM>ROLL CONNECTOR>ADJUSTMENT .
Connect all the connectors under the instrument panel.
Install the column cover assembly.
Install the knee airbag module Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
Install the cover LWR driver and the cover steering LWR.
Install the steering wheel.
Tightening torque:

Steering wheel: 39 N.m (4 kgf.m, 28.8 ft.lb)

Clearance:

Between column cover assembly and steering wheel: 4 - 6 mm (0.16 - 0.24 in)
Install the driver's airbag module Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
NOTE: Place the tilt lever to the lock position after the steering column is adjusted.
