Steering Wheel: Disassembly

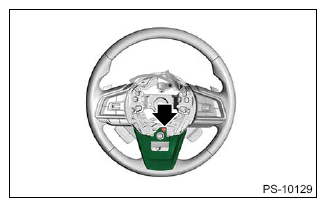

Remove the screws on the back of the steering wheel.

Courtesy of SUBARU OF AMERICA, INC.

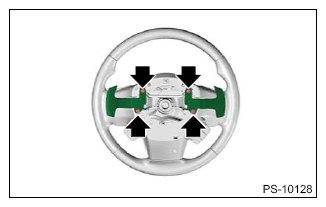

Disconnect the connector and remove the paddle shift switch.
Release the claws and remove the screws, then detach the cover spoke.

Courtesy of SUBARU OF AMERICA, INC.

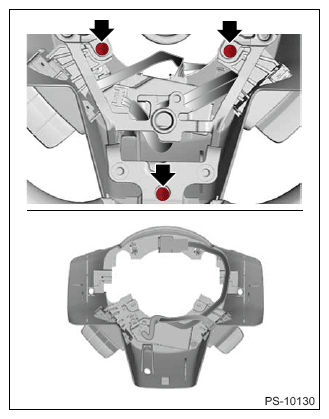

Remove the cover steering wheel LWR.
CAUTION: Carefully remove the cover steering wheel LWR and the steering wheel. Do not pull with excessive force. Otherwise, heat wire between cover steering wheel LWR and steering wheel may be damaged. (Model with steering heater)
1. Remove the connectors and screws. (Model with MID switch and model with steering heater switch)
2. Release the claws and harness clips, and detach the cover steering wheel LWR.
NOTE: For model with steering heater, disconnect the connector with the cover steering wheel LWR removed from steering wheel, and remove the steering heater unit. Also, remove the heater elements RH and LH secured with double-sided tape from the cover steering wheel LWR.

Courtesy of SUBARU OF AMERICA, INC.

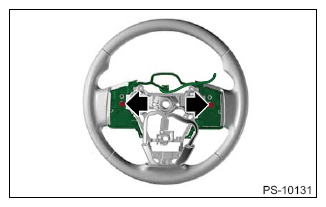

Release the claws and remove the screws, then detach the satellite switch.

Courtesy of SUBARU OF AMERICA, INC.

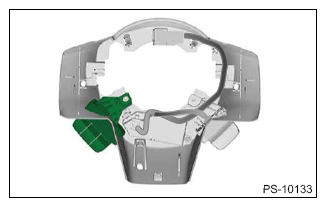

Release the claws, and then remove the switch assembly steering (MID) switch. (Model with MID switch)

Courtesy of SUBARU OF AMERICA, INC.

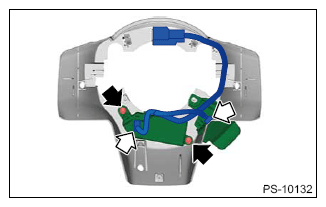

Release the connector, screws and claws, and remove the steering heater switch and steering heater unit. (Model with steering heater)

Courtesy of SUBARU OF AMERICA, INC.
