Rubber Bushing Arm Front

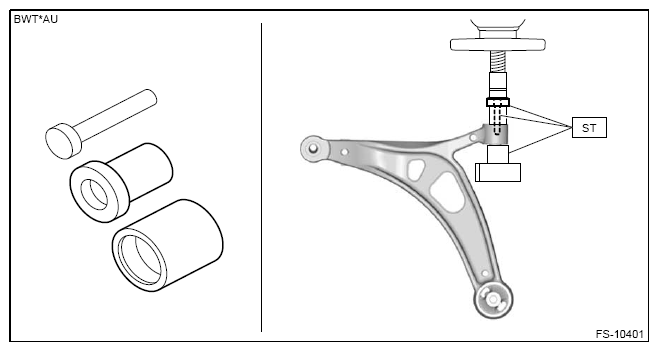

  1. Remove the rubber bushing arm front using the ST.

    Preparation tool:

    ST: INSTALLER AND REMOVER SET (927680000)

    G13949563Courtesy of SUBARU OF AMERICA, INC.
