Front Suspension System And Wheel Alignment: Stabilizer: Installation: Stabilizer

CAUTION:

For parts which are not reusable, always use new parts.

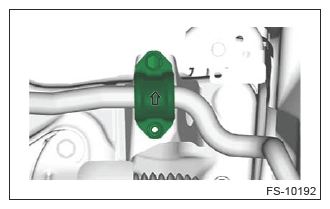

Install the stabilizer clamp with the arrow mark facing the front of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

Set the stabilizer front to the vehicle in the reverse order of removal, and install the clamp stabilizer.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Install the stabilizer link front (bottom part).
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)
Install the front exhaust pipe.(H4DO model) Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
Install the center exhaust pipe (rear).(H4DOTC model) Ref. to CENTER EXHAUST PIPE (REAR) .
Install the under guard front.(H4DOTC model)
Tightening torque:

32 N.m (3.3 kgf-m, 23.6 ft-lb)
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
