Front Camber

Adjust the camber angle to the following value.

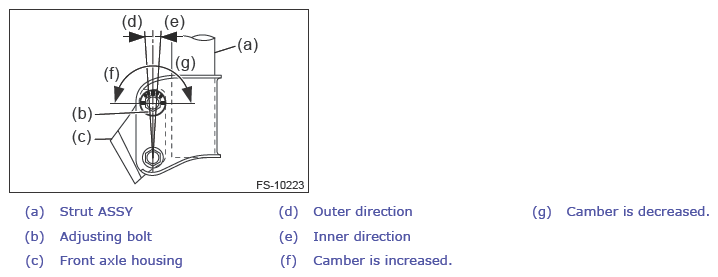

1. Loosen the nut side, while holding the strut assembly bolt side. (2 places at upper and lower)
2. Turn the adjusting bolt so that the camber is set at specification.
   NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°10'.

   Courtesy of SUBARU OF AMERICA, INC.

   To increase camber.
   Rotate the left side counterclockwise.	Rotate the right side clockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

   To decrease camber.
   Rotate the left side clockwise.	Rotate the right side counterclockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

3. Tighten two new self-locking nuts.
   CAUTION: While holding the bolt side, tighten the nut to the specified torque.
   NOTE: First, tighten the adjusting bolt (upper side) to the specified torque.

   Tightening torque:

   155 N.m (15.8 kgf-m, 114.3 ft-lb)
