Wheel Alignment: Inspection: Caster

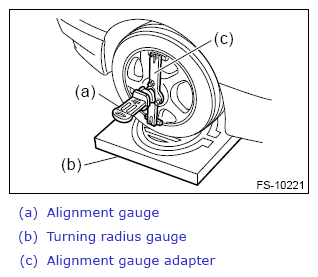

- Place the front tires on the turning radius gauge.NOTE: Make sure that the ground contact surfaces of the front tires and rear tires are at the same level.
- Set the alignment gauge adapter into the center of wheel, and then set the alignment gauge.
- Measure the caster angle in accordance with the operation manual for alignment gauge.
| Model | Caster |
|---|---|
| Sedan model | 5°59' |
| OUTBACK model | 5°25' |
