Suspension Height

Park the vehicle on a level surface.
Empty the vehicle so that it is at "curb weight".
NOTE: Empty the luggage room, load the spare tire, jack and service tools, and fill up the fuel tank.
Set the steering wheel in a straight-ahead position, and stabilize the suspension by moving the vehicle in a straight line for 5 m (16 ft) or more.

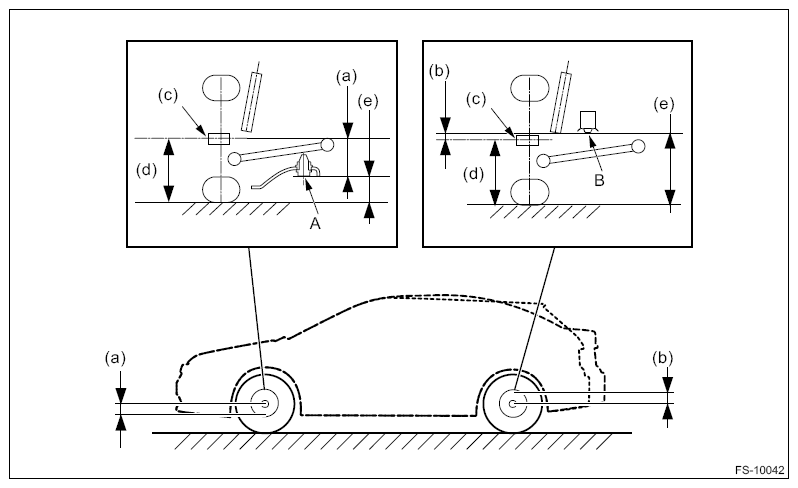

Measure the distance (d) from the spindle end (c) to the ground surface.

Measure the distances (e) from the end of mounting bolt for the front arm rear plate (point "A" shown in the following figure) and from the end of bolt for the sub frame assembly rear at rear (point "B" shown in the following figure) to the ground surface.

Calculate the suspension heights (a) and (b) using the following calculation:

(d) - (e) = suspension height

Courtesy of SUBARU OF AMERICA, INC.

Model	Suspension height specification mm (in)
	(Tolerance: ^{+12 mm}_{-24 mm} (^{+0.47 in}_{-0.94 in} ))
	Front	Rear
Sedan model	130 (5.12)	-20 (-0.79)
OUTBACK model	59 (2.32)	-70 (-2.76)
