Rear Shock Absorber

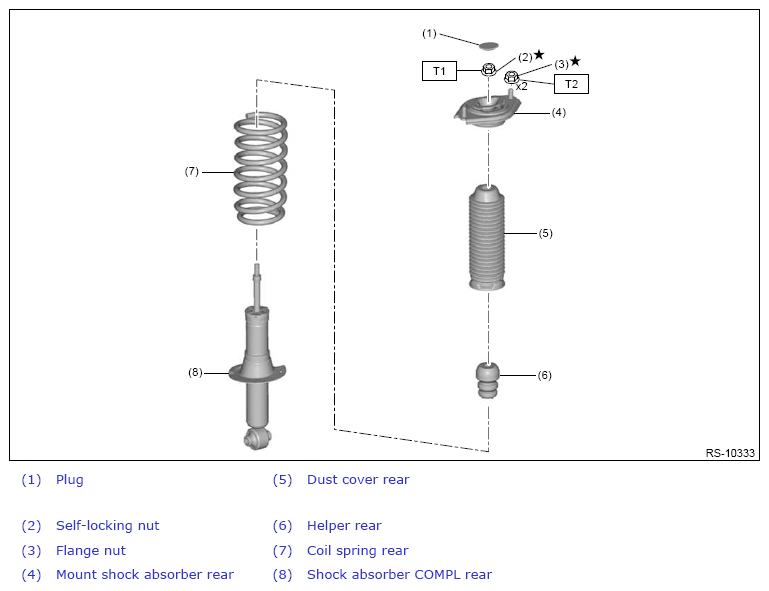

Fig 1: Rear Shock Absorber Components (Sedan Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)

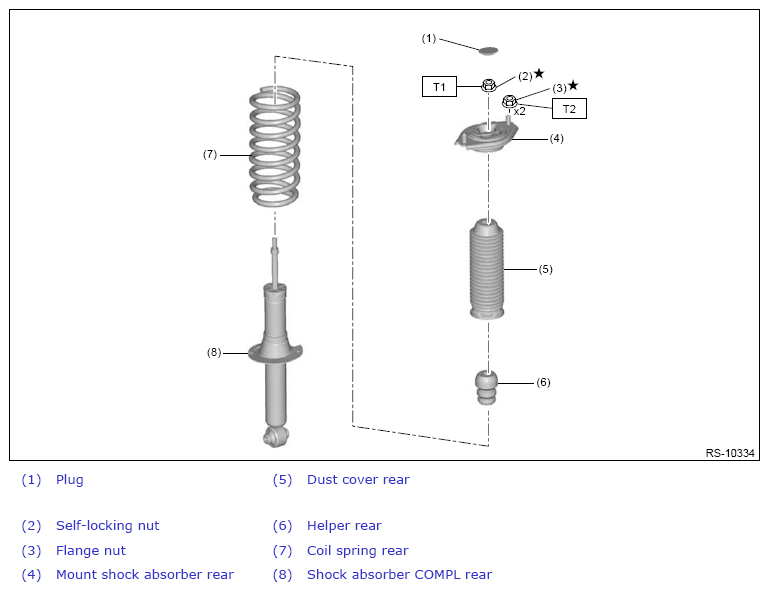

Fig 2: Rear Shock Absorber Components (Outback Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)
