Rear Lateral Link (Front): Assembly

Before assembly, inspect the following items and replace any faulty part with a new one.
- Check the rear lateral link assembly front for damage and deformation.
- Check the bushing for abnormal cracks, damage or fatigue.
- Check the boot on the ball joint for damage.

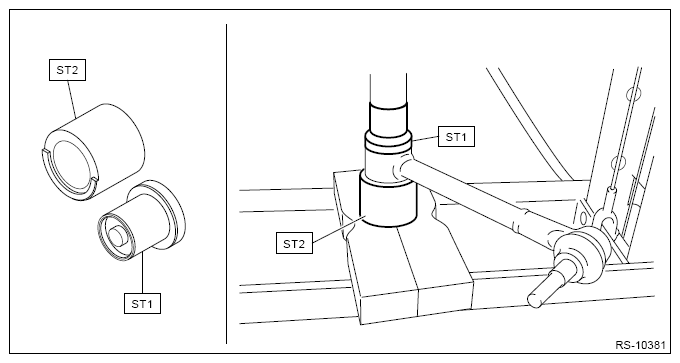

Press-fit the rubber bushing lateral link front using ST1 and ST2.
CAUTION: Make sure to press the bushing straight in.

Preparation tool:

ST1 & ST2: INSTALLER & REMOVER (20099AE000)

Courtesy of SUBARU OF AMERICA, INC.
