Stabilizer Bushing
CAUTION:
- For parts which are not reusable, always use new parts.
- Always tighten the stabilizer bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the ground.

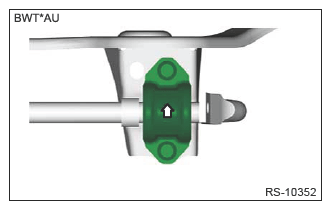

- Install the stabilizer clamp with the arrow mark facing upward.
- Before installation, inspect the following items and replace any faulty part with a new one. Check the rubber bushing stabilizer rear for abnormal cracks, fatigue or damage.
- Install the rubber bushing stabilizer rear.
- Install the clamp stabilizer.
Tightening torque:
38 N.m (3.9 kgf.m, 28.0 ft.lb)
