Trailing Link: Removal

  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

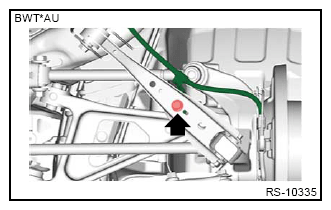

  2. Remove the bolts and remove the adapter cord EPB bracket.
    G13620888Courtesy of SUBARU OF AMERICA, INC.

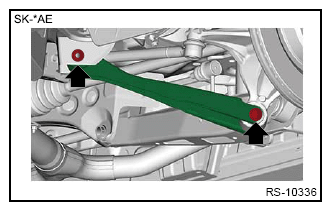

  3. Remove the bolts and nuts, and then remove the trailing link assembly rear.
    G13620889Courtesy of SUBARU OF AMERICA, INC.
