Crossmember Support: Removal

  1. Lift up the vehicle.
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the under guard front.(H4DOTC model) Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

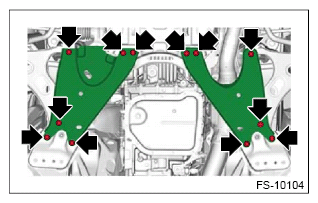

  4. Remove the bolt, and remove the crossmember support rear.
    G12400561Courtesy of SUBARU OF AMERICA, INC.

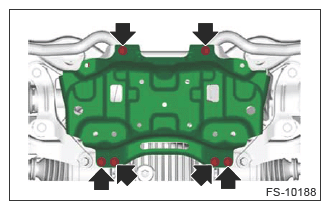

  5. Remove the bolt, and remove the crossmember support front.
    G13199298Courtesy of SUBARU OF AMERICA, INC.
