Rubber Bushing Arm Front
- Before assembly, inspect the following items and replace any faulty part with a new one.
- Check the arm COMPL front for damage or cracks, and replace if defective.
- Check the bushing for abnormal cracks, damage or fatigue.
- Check the boot on the ball joint COMPL for damage.

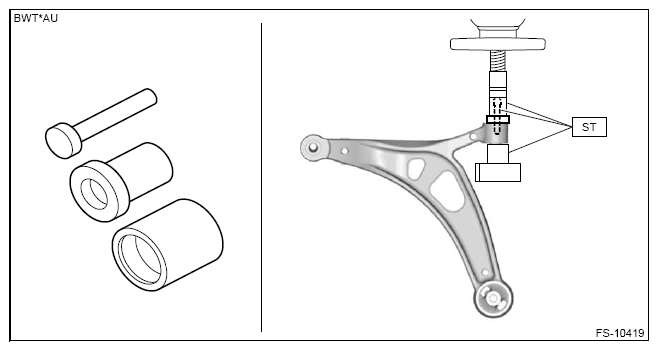

- Install the bushing arm front using the ST.
Preparation tool:
ST: INSTALLER AND REMOVER SET (927680000)
