Rear Wheel Alignment (Inspection Value)

Sedan model

Suspension height (Tolerance: ^{+12 mm}_{-24 mm} (^{+0.47 in}_{-0.94 in} ))	mm (in)	-20 (-0.79)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		-1°30'
Toe-in	mm (in)	0±3 (IN0±0.12)
		Toe angle (sum of both wheels): 0°±15'
Thrust angle (tolerance: ±30')		0°00'

OUTBACK model

Suspension height (Tolerance: ^{+12 mm}_{-24 mm} (^{+0.47 in}_{-0.94 in} ))	mm (in)	-70 (-2.76)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		-1°00'
Toe-in	mm (in)	0±3 (IN0±0.12)
		Toe angle (sum of both wheels): 0°±14'
Thrust angle (tolerance: ±30')		0°00'

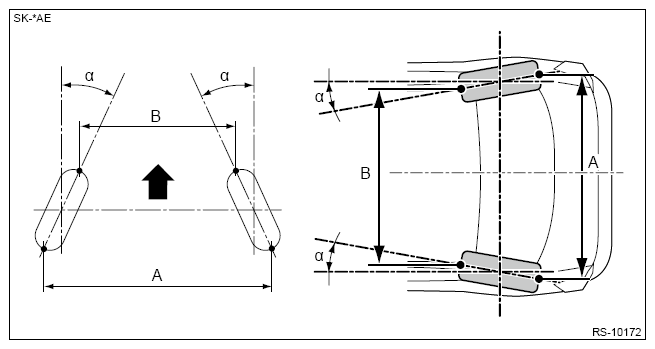

A - B = Positive: Toe-in, Negative: Toe-out

α = Individual toe angles

Courtesy of SUBARU OF AMERICA, INC.
