Stabilizer Bushing

CAUTION:

For parts which are not reusable, always use new parts.

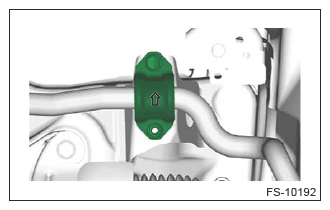

Install the stabilizer clamp with the arrow mark facing the front of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

Before installation, inspect the following items and replace any faulty part with a new one.
Check the rubber bushing stabilizer front for abnormal cracks, fatigue or damage.
Install the rubber bushing stabilizer front.
Install the clamp stabilizer.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Install the front exhaust pipe.(H4DO model) Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
Install the center exhaust pipe (rear).(H4DOTC model) Ref. to CENTER EXHAUST PIPE (REAR) .
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
