Stabilizer Bushing

  1. Lift up the vehicle.
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the front exhaust pipe.(H4DO model) Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .
  4. Remove the center exhaust pipe (rear).(H4DOTC model) Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

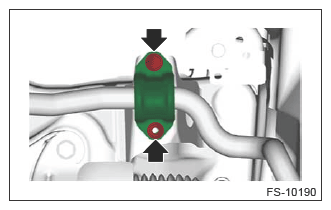

  5. Remove the bolt and nut, and remove the clamp stabilizer.
    G13949545Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the rubber bushing stabilizer front.
