Control Valve Body: Inspection
- Check for oil leaks.
- Check that there is no deformation, cracks or other damages.

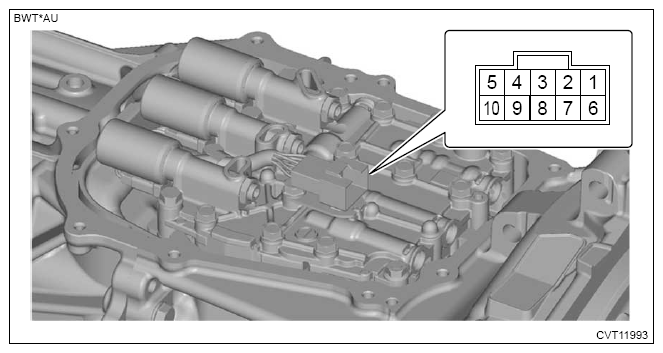

- Measure the resistance of each solenoid, sensor and ground wire.NOTE: Measurement should be performed at 20°C (68°F).
- Solenoid
Solenoid Terminal No. Standard Line pressure solenoid 1 - Control valve body 3.3 - 7.3 Ω Lock-up duty solenoid 2 - Control valve body 10 - 14.2 Ω F&R clutch solenoid 3 - Control valve body 3.3 - 7.3 Ω Secondary solenoid 4 - Control valve body 3.3 - 7.3 Ω Oil pump ON/OFF solenoid 6 - Control valve body 12.5 - 19.5 Ω Primary DOWN solenoid 7 - Control valve body 10 - 14.2 Ω Primary UP solenoid 8 - Control valve body 10 - 14.2 Ω AWD solenoid 9 - Control valve body 3.3 - 7.3 Ω - Sensor
Sensor Terminal No. Standard Oil temperature sensor 5 - 10 Approx. 2.5 kΩ [20°C (68°F)]
- Solenoid
