Control Valve Body: Installation

  1. Check the control valve body for foreign matter adhesion.
  2. Install the control valve body.
    1. Set the control valve body to the transmission body.
    2. Temporarily tighten the bolt (silver).

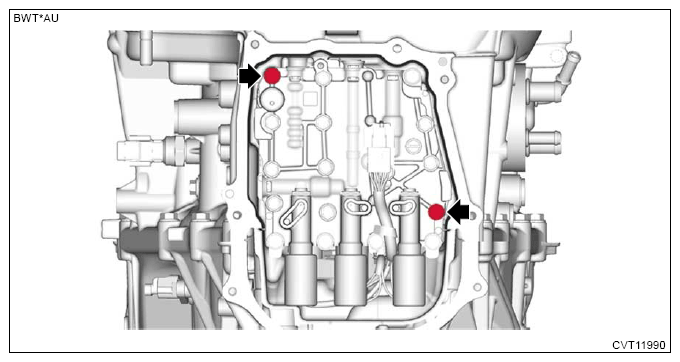

      G13950435Courtesy of SUBARU OF AMERICA, INC.
    3. Attach the bolt (black).

      Tightening torque:

      9 N.m (0.9 kgf-m, 6.6 ft-lb)

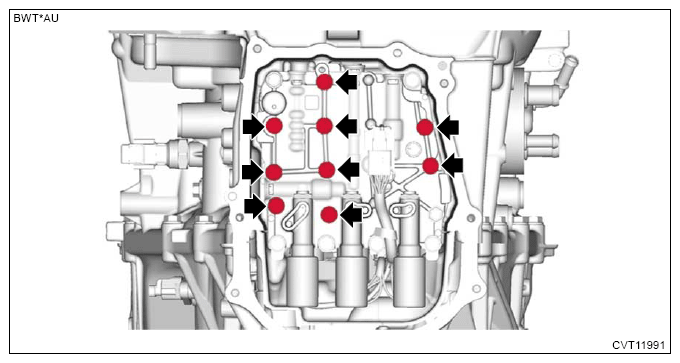

      G13950436Courtesy of SUBARU OF AMERICA, INC.
    4. Tighten the bolt (silver).

      Tightening torque:

      9 N.m (0.9 kgf-m, 6.6 ft-lb)

  3. Install a new O-ring to the transmission harness.
    NOTE: Apply CVTF to the O-rings.
  4. Temporarily attach the transmission harness to the valve cover.
  5. Install a new gasket to the valve cover.
  6. Apply liquid gasket to the area shown in the figure.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the transmission body and valve cover gasket.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1216J or equivalent

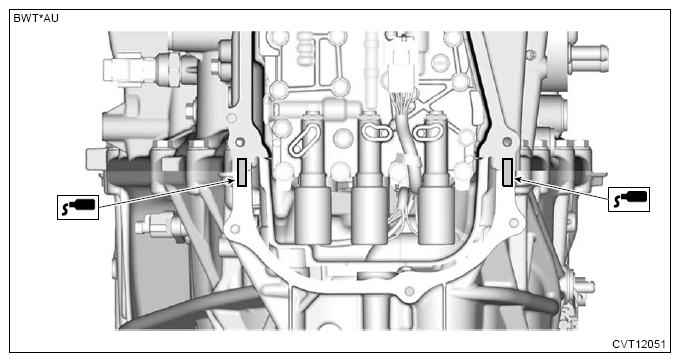

    G13950437Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the connector to the control valve body.
  8. Temporarily attach the valve cover.
  9. Tighten the bolts in the numerical order as shown in the figure.
    CAUTION: Be careful not to catch the ST (SHEET SPECIAL TOOL).

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

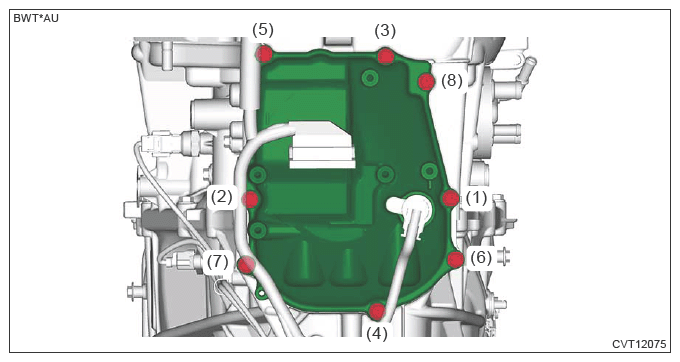

    Fig 1: Valve Cover Bolts Tightening Sequence
    G13950438Courtesy of SUBARU OF AMERICA, INC.
  10. Tighten the bolt which holds the transmission harness.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

  11. Remove the ST (SHEET SPECIAL TOOL).
  12. Install the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>THROTTLE BODY>INSTALLATION .
  13. Install the clip which holds the transmission harness.
  14. Install the air breather hose stay.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

  15. Connect the transmission harness connector to the engine wiring harness.
  16. Install the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CONTROL MODULE (TCM)>INSTALLATION .
  17. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
  18. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  19. Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>INSPECTION .
  20. Perform the [Clear AT learning value] and [AT learning mode] using Subaru Select Monitor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AT LEARNING .
