Converter Case: Assembly

Install the stud bolt.

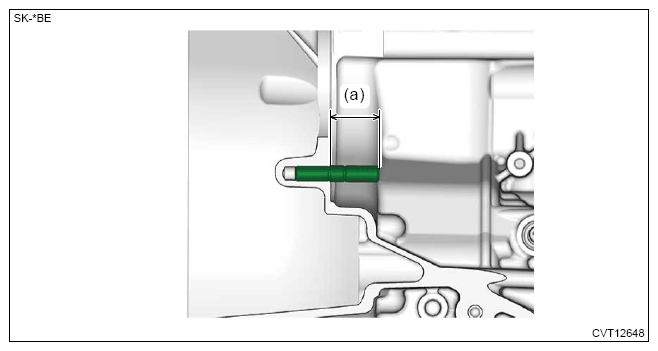

NOTE: After installing, check that the protruding portion (a) is within the standard.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Specification:

25.0 - 28.7 mm (0.98 - 1.13 in)

Courtesy of SUBARU OF AMERICA, INC.
Install the plugs and oil guides with new O-rings.
NOTE:
- Apply CVTF to the O-rings.
- Replace the gasket of filler plug (for differential gear oil) with a new part after adjusting the differential gear oil.
Tightening torque:

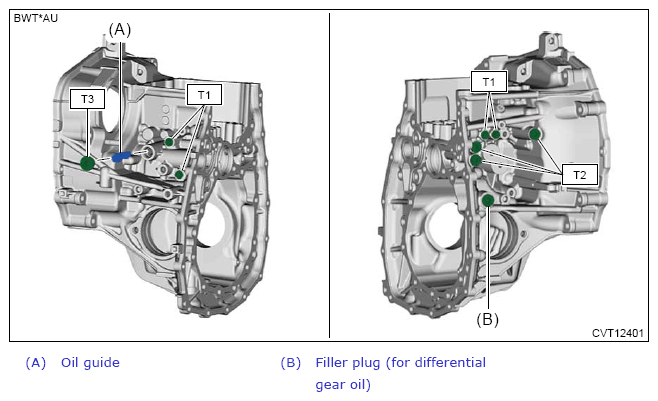

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 22 N.m (2.2 kgf-m, 16.2 ft-lb)

T3: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

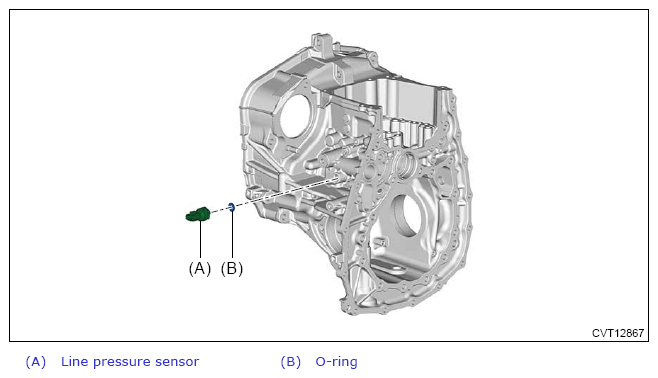

Install the line pressure sensor using a new O-ring.
NOTE: Apply CVTF to the O-rings.

Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Attach the drain plug (A) using a new gasket, using TORX® bit T70.
Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)
Temporarily install the overflow plug (B).
NOTE: Replace the gasket of overflow plug with a new part after adjusting the amount of differential gear oil.

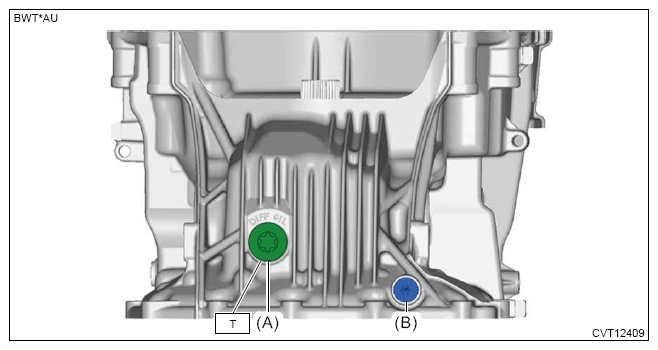

Fig 1: Drain Plug (With Torque Specification)
