Converter Case: Disassembly

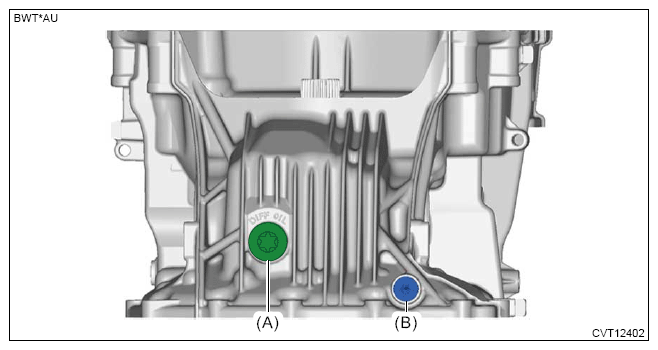

Remove the drain plug (A) using TORX® bit T70.
Remove the overflow plug (B).

Courtesy of SUBARU OF AMERICA, INC.

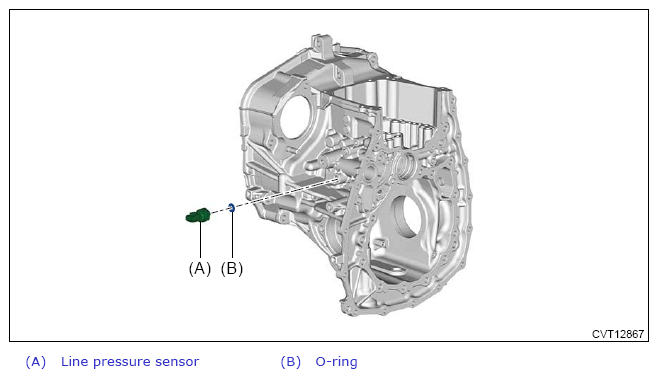

Remove the line pressure sensor and O-ring.

Courtesy of SUBARU OF AMERICA, INC.

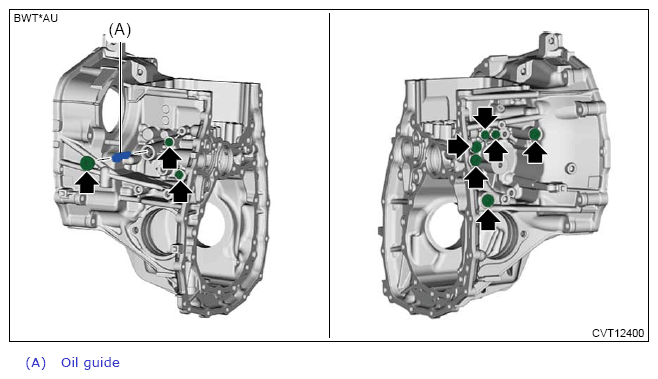

Remove the plugs and oil guide.

Courtesy of SUBARU OF AMERICA, INC.

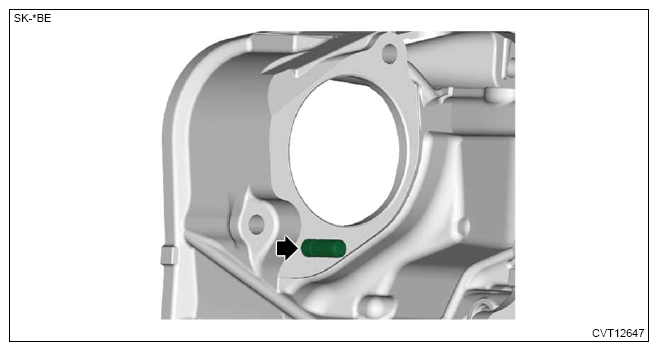

Remove the stud bolt.

Courtesy of SUBARU OF AMERICA, INC.
