Extension Case: Assembly

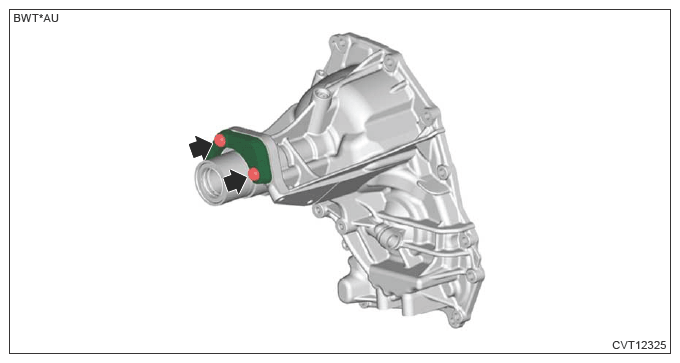

Install the weight.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

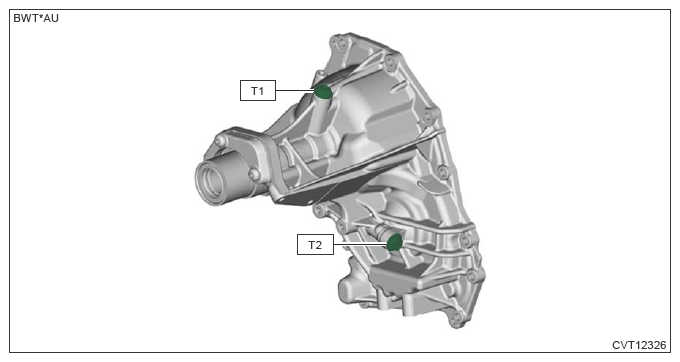

Install the plugs with new O-rings.
NOTE: Apply CVTF to the O-rings.

Tightening torque:

T1: 22 N.m (2.2 kgf-m, 16.2 ft-lb)

T2: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

Fig 1: Extension Case Plugs (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Install a new extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE OIL SEAL>REPLACEMENT .

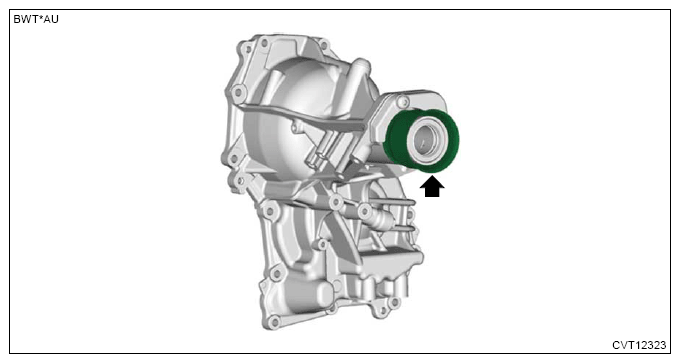

Install the dust cover.

Courtesy of SUBARU OF AMERICA, INC.
