Internal Gear

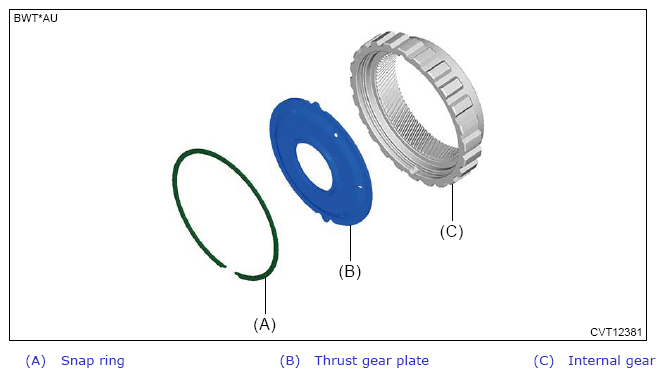

  1. Install the thrust gear plate and snap ring.
    G13950800Courtesy of SUBARU OF AMERICA, INC.

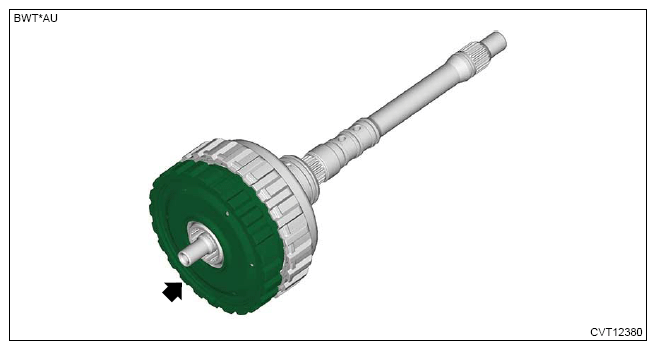

  2. Install the internal gear.
    G13950801Courtesy of SUBARU OF AMERICA, INC.
