Planetary Carrier

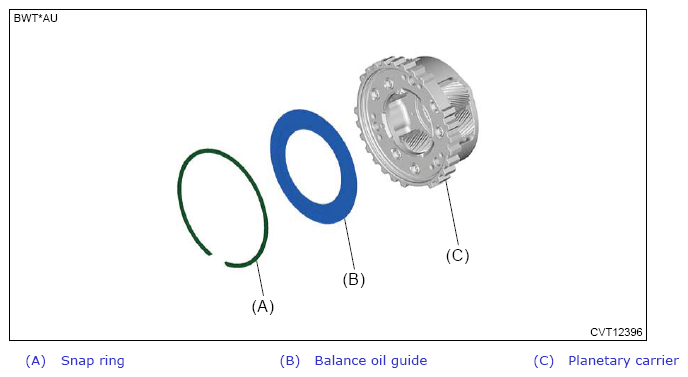

  1. Install the balance oil guide and snap ring.
    G13950795Courtesy of SUBARU OF AMERICA, INC.

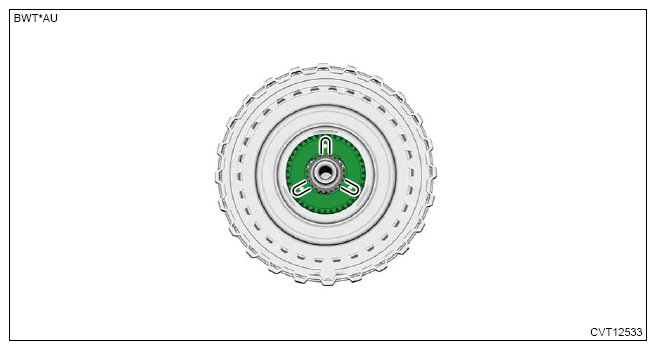

  2. Install the sun gear.
    NOTE: Make sure to install in the right direction.
    G13950796Courtesy of SUBARU OF AMERICA, INC.

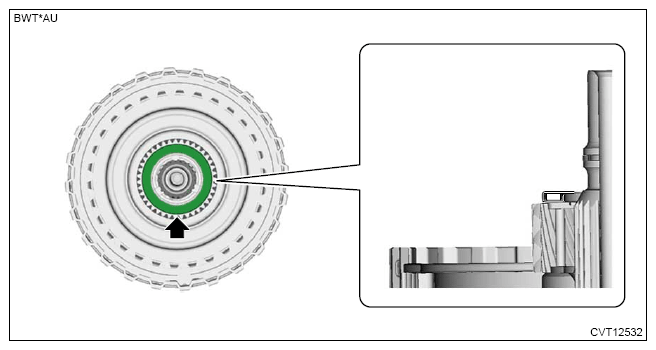

  3. Install the thrust bearing as shown in the figure.
    NOTE: Make sure to install in the right direction.
    G13950797Courtesy of SUBARU OF AMERICA, INC.

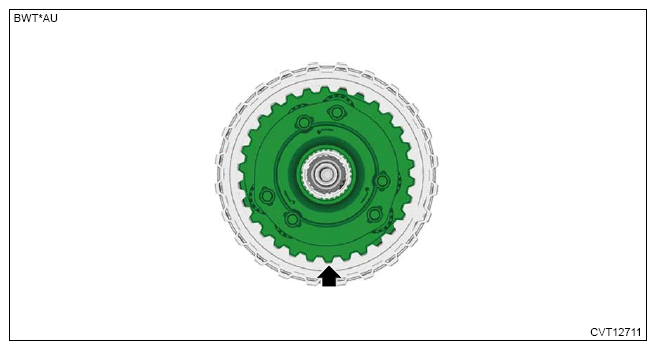

  4. Install the planetary carrier.
    G13950798Courtesy of SUBARU OF AMERICA, INC.

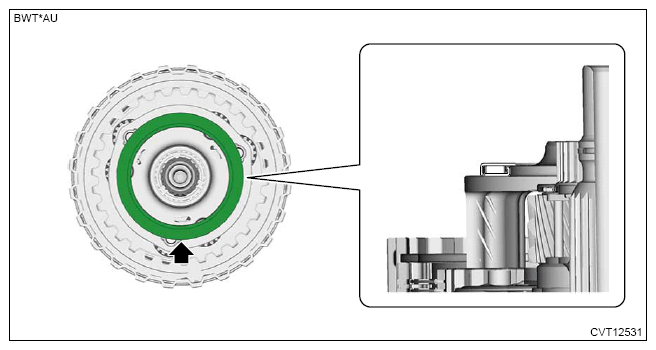

  5. Install the thrust bearing as shown in the figure.
    NOTE: Make sure to install in the right direction.
    G13950799Courtesy of SUBARU OF AMERICA, INC.
