Front Differential: Disassembly

NOTE: When replacing the side bearing, always replace it together with inner race and outer race.

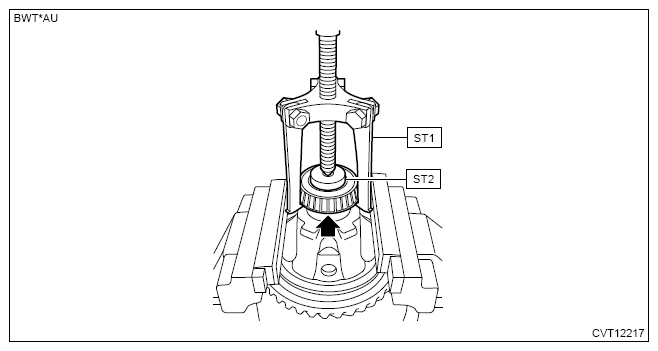

Remove the side bearing inner race using ST1 and ST2.
Preparation tool:

ST1: PULLER ASSY (399703600)

ST2: SEAT (398497701)

Courtesy of SUBARU OF AMERICA, INC.

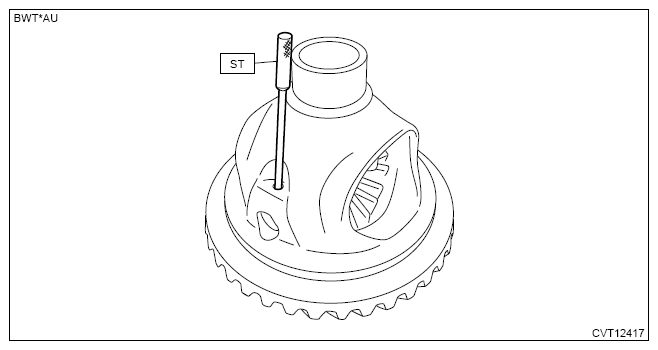

Using the ST, remove the spring pin.
Preparation tool:

ST: STRAIGHT PIN REMOVER (899904100)

Courtesy of SUBARU OF AMERICA, INC.

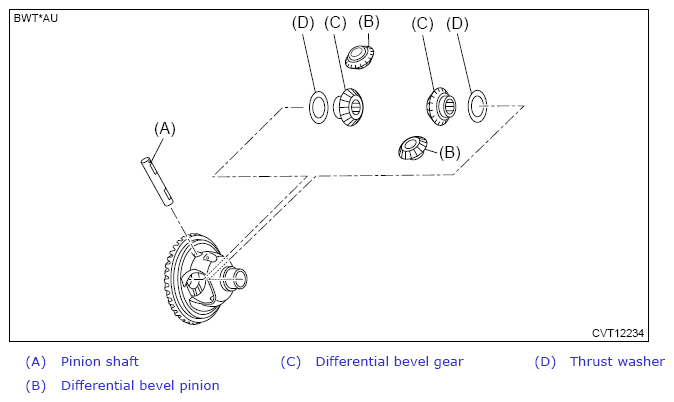

Remove the pinion shaft, and remove the differential bevel pinion, differential bevel gear and thrust washer.

Courtesy of SUBARU OF AMERICA, INC.
