Torque Converter And Converter Case

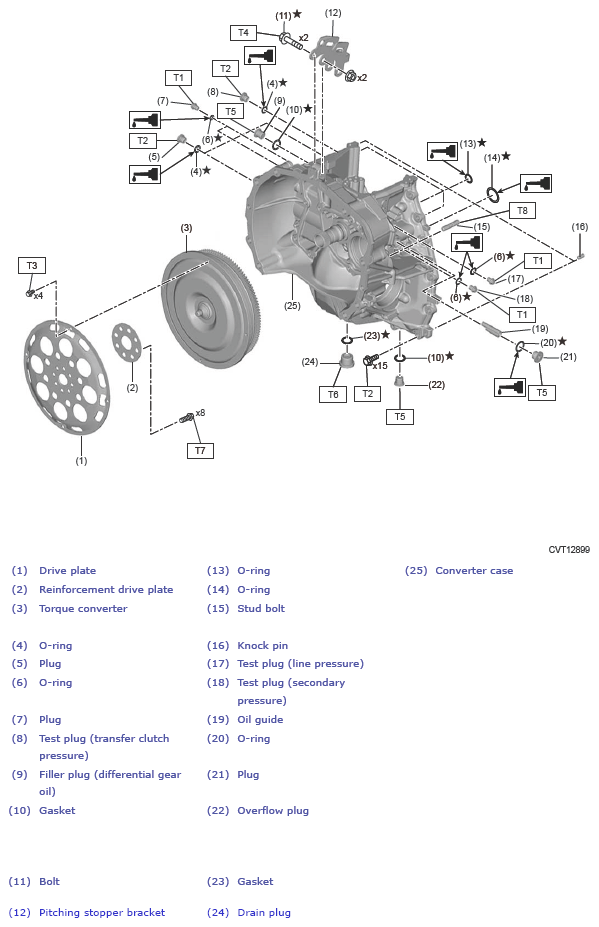

Fig 1: Torque Converter And Converter Case Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 22 (2.2, 16.2)

T3: 25 (2.5, 18.4)

T4: 32 (3.3, 23.6)

T5: 50 (5.1, 36.9)

T6: 70 (7.1, 51.6)

T7:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>DRIVE PLATE>INSTALLATION .

T8:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CONVERTER CASE>ASSEMBLY .
